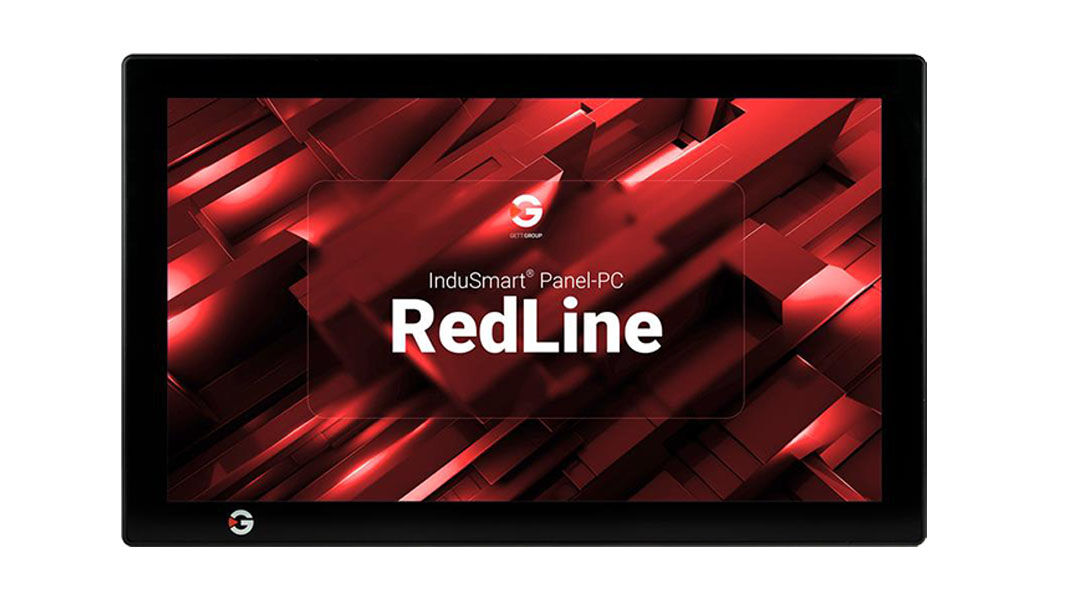

InduSmart® Panel-PC RedLine 10.1"

The InduSmart® Panel PC RedLine from GETT is a high-performance industrial panel PC for demanding HMI applications and complex system environments. It combines high computing power with an open system architecture and diverse interfaces – ideal for projects where performance, integration capabilities, and flexibility are paramount.

advantages

  • Industrial panel PC with powerful Intel® Core™ platform
  • Open system architecture for flexible software and system integration
  • Fanless design for increased operational reliability in continuous operation
  • Delivered with Windows pre-installed; other operating systems can be installed.
  • Long-term availability for stable machine and plant concepts
  • High computing power for data-intensive HMI and visualization applications
  • Extensive interfaces (including LAN, USB, HDMI)
Do you have any questions about the product or do you need further information? Just give us a call! You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.

Order data*

KURZBEZEICHNUNGARTIKELNUMMERFarbe
InduSmart Panel-PC RedLine 10,1"
IPRD003
schwarz

*Further layouts and individual customisation available on request. MOQ´s apply.

Technical data

  • Area of application:
    industrial
    Guarantee / Warranty:
    2 Jahre Garantie

    Material:

    Front material:
    Glas
    Housing colour:
    schwarz
    Housing material:
    Stahlblech verzinkt
  • Temperature ranges:

    min. storage temperature:
    -20°C
    max. storage temperature:
    75°C
    min. operating temperature:
    0°C
    max. operating temperature:
    50°C
    max. humidity:
    95%

    Fastening:

    Number of fixing points:
    4
    Fastening type:
    VESA
    Thread:
    M4
    Distance X:
    75.00 mm
    Distance Y:
    75.00 mm

    Product dimensions:

    Length (width):
    275.80 mm
    Width (depth):
    194.40 mm
    Height:
    81.50 mm
    Weight:
    2.90kg
  • Single Board Computer (SBC):

    Processor type:
    12th Gen Intel Core i5-1235U
    Processor base:
    1.3GHz
    Number of cores:
    10
    Clock frequency:
    max. 3,3 GHz

    card slots:

    Working memory:

    Working memory:
    8.00 GB, DDR4
    Max. RAM:
    32

    HDD / SSD:

    Hard disk type:
    SSD
    Hard disk capacity:
    128

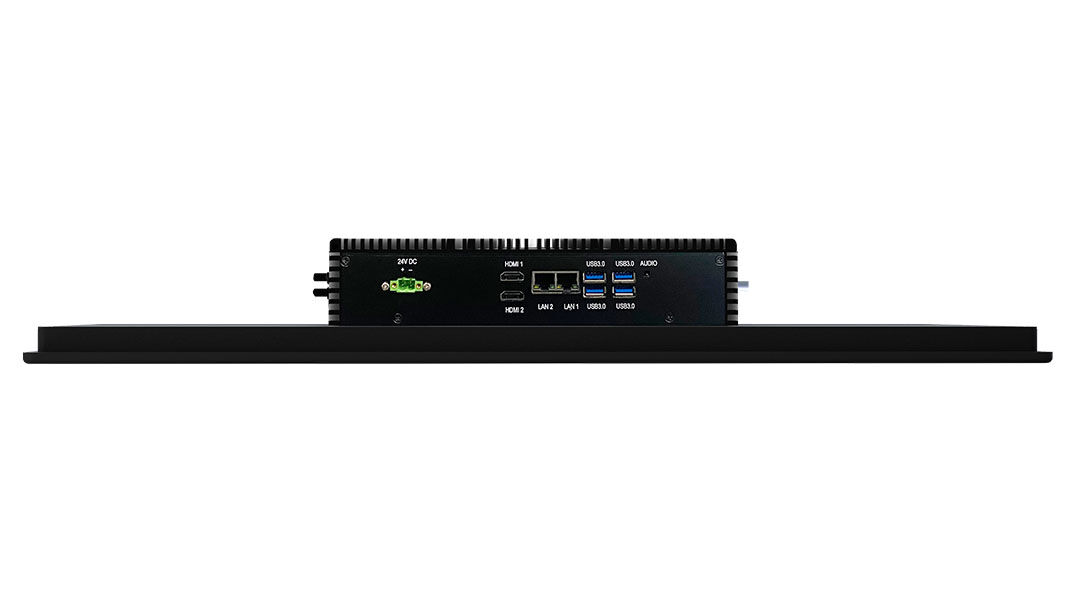

  • USB interfaces:

    USB-A:
    4x 3.0

    Display & Audio:

    HDMI:
    2
    Audio-Out:
    1

    LAN / WLAN:

    Wireless:
    1
    LAN:
    2
  • Display

    Display size:
    10,1"
    Display Touch Technology:
    PCAP/10-Point-Multitouch
    Display brightness:
    400 cd/m²
    Display panel type:
    TFT
    Display resolution:
    1280 x 800 (WXGA)
    Display viewing angle:
    H 85°/ 85°, V 85°/ 85°
    Display aspect ratio:
    16:10
    Display aspect ratio:
    900:1
  • Electrical data:

    Max. current consumption:
    24.00V / DC
    Type of cooling:
    Lüfterlos
  • Declarations & Certifications:

    • CE

    • EMV*

    • REACH*

    * Explanations available on request
