Compact membrane-covered front-mount keyboard with robust short-travel keys and 38mm trackball

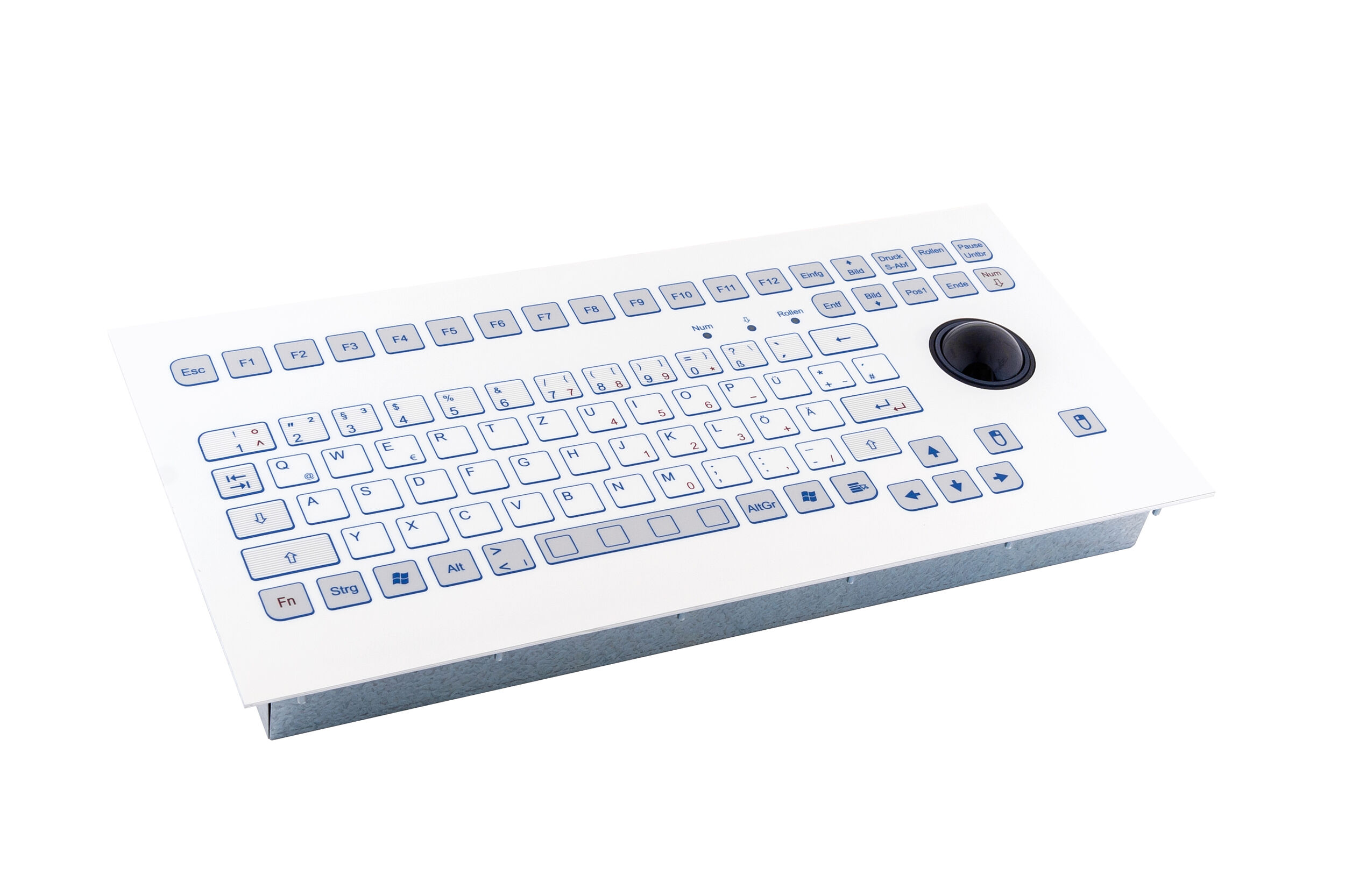

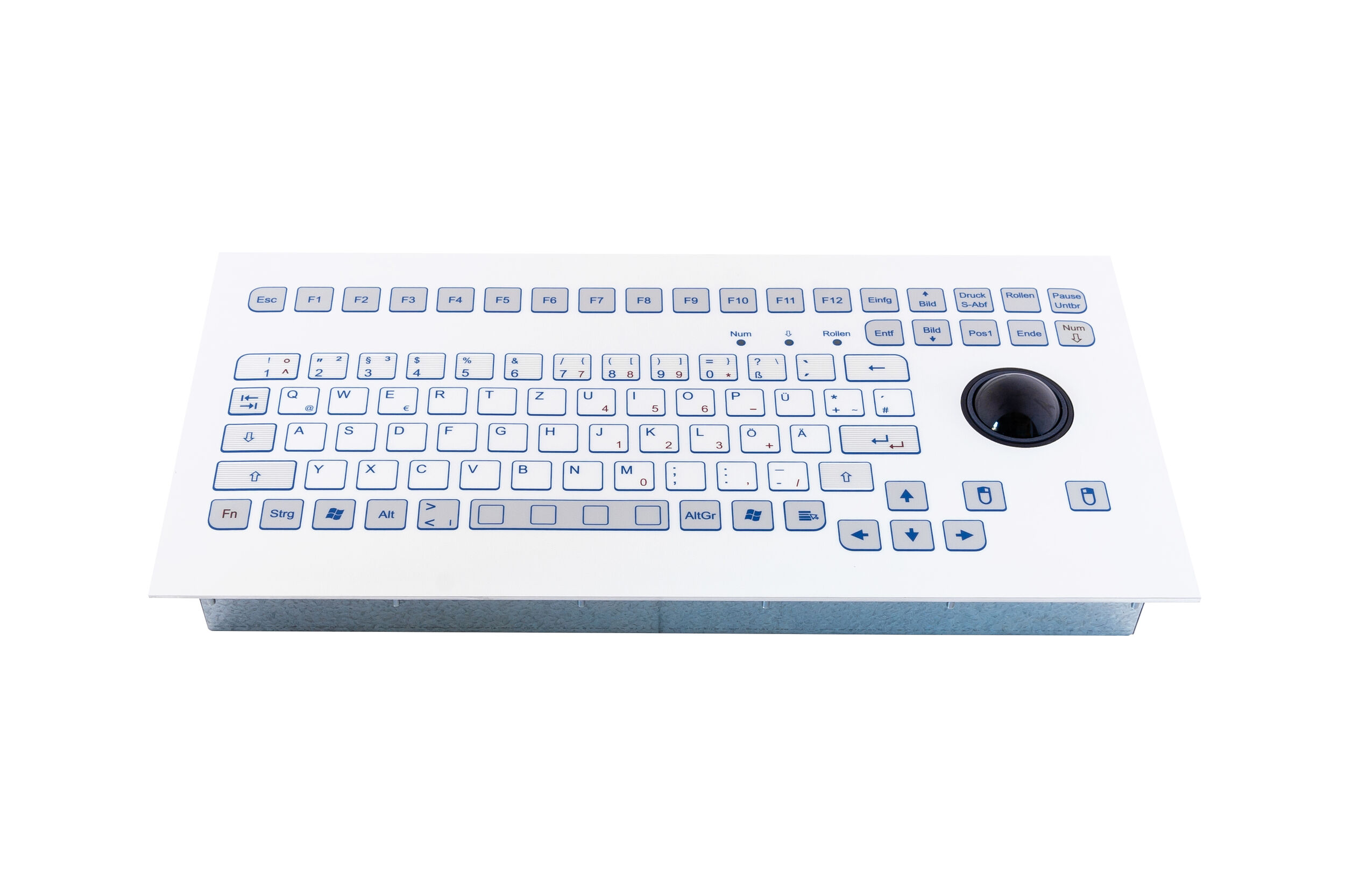

The TKS Front‑Mount Membrane Keyboard is a compact industrial input device featuring an integrated 38mm trackball and short‑travel mechanical keys, specifically designed for flush front‑panel integration. With an IP65 rating, it effectively resists dirt, dust, and liquids, making it suitable for harsh environments. It is widely used in industrial control panels, machinery operation consoles, automated production lines, and outdoor self‑service terminals – wherever high protection ratings and front‑panel integration are required.

This keyboard seamlessly combines a compact footprint, reliable protection, precise input, and trackball control – making it your ideal choice for efficient, stable operation in demanding environments.

ADVANTAGES

  • Robust panel-mount keyboard for frontal integration
  • Integrated 38-mm-trackball
  • Robust polyester front foil with key embossment
  • IP65 resistant against dirt, dust and liquids
  • Individual modifications on demand.
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.
+852 3461 9789

Order Data*

LAYOUTShort NameOrder NumberColor
US
TKS-088c-TB38-MODUL-USB-US
KS18293
white
product details

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Front mounting
    Guarantee / Warranty:
    2 years
    legal warranty

    Keys:

    Key stroke:
    0.3
    Operating force:
    2.60 N
    Switching technology:
    short stroke

    Technical data mouse replacement:

    Trackball:
    mechanical
    Width:
    38 mm

    Material:

    Front material:
    aluminium
    Front finish:
    Decorative foil
    Housing colour:
    white
    Housing material:
    sheet steel
    Housing Finish:
    galvanised
    Front thickness:
    2.5 mm

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    80°C
    min. Operating temperature:
    0°C
    max. Operating temperature:
    70 °C

    Fastening:

    Number of fastening points:
    18
    Fastening type:
    Threaded bolt
    Thread:
    M3

    Product dimensions:

    Length (width):
    370 mm
    Width (depth):
    180 mm
    Height:
    56.30 mm
    Weight:
    1200 g

    Packaging dimensions:

    Length (width):
    450 mm
    Width (depth):
    243 mm
    Height:
    70 mm
    Weight:
    1500 g

  • INTERFACE:

    Wireless:
    -
    USB-Type:
    USB-A
    USB-Compliance:
    USB V1.1 compliant
    Supported operating systems:
    Win
    Cable length:
    2000 mm
    Cable color:
    grey

    Electrical data:

    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65 (stat.) / IP54 (dyn.)

    Declarations & Certifications

    • CE

    • EMV*

    • RoHS*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads

Product description

Industrial TKS keyboard with integrated 38mm trackball. This keyboard, part of the InduDur brand family, features a rugged polyester front membrane (with embossed keys), short‑travel mechanical keys, and a 38mm trackball – specifically designed for industrial equipment requiring front‑panel integration.

The keyboard is rated IP65 for resistance against dirt, dust, and liquids, ensuring reliable operation in harsh environments. Customisation options are available (such as company logo printing and key layout adjustments) to meet specific requirements.
