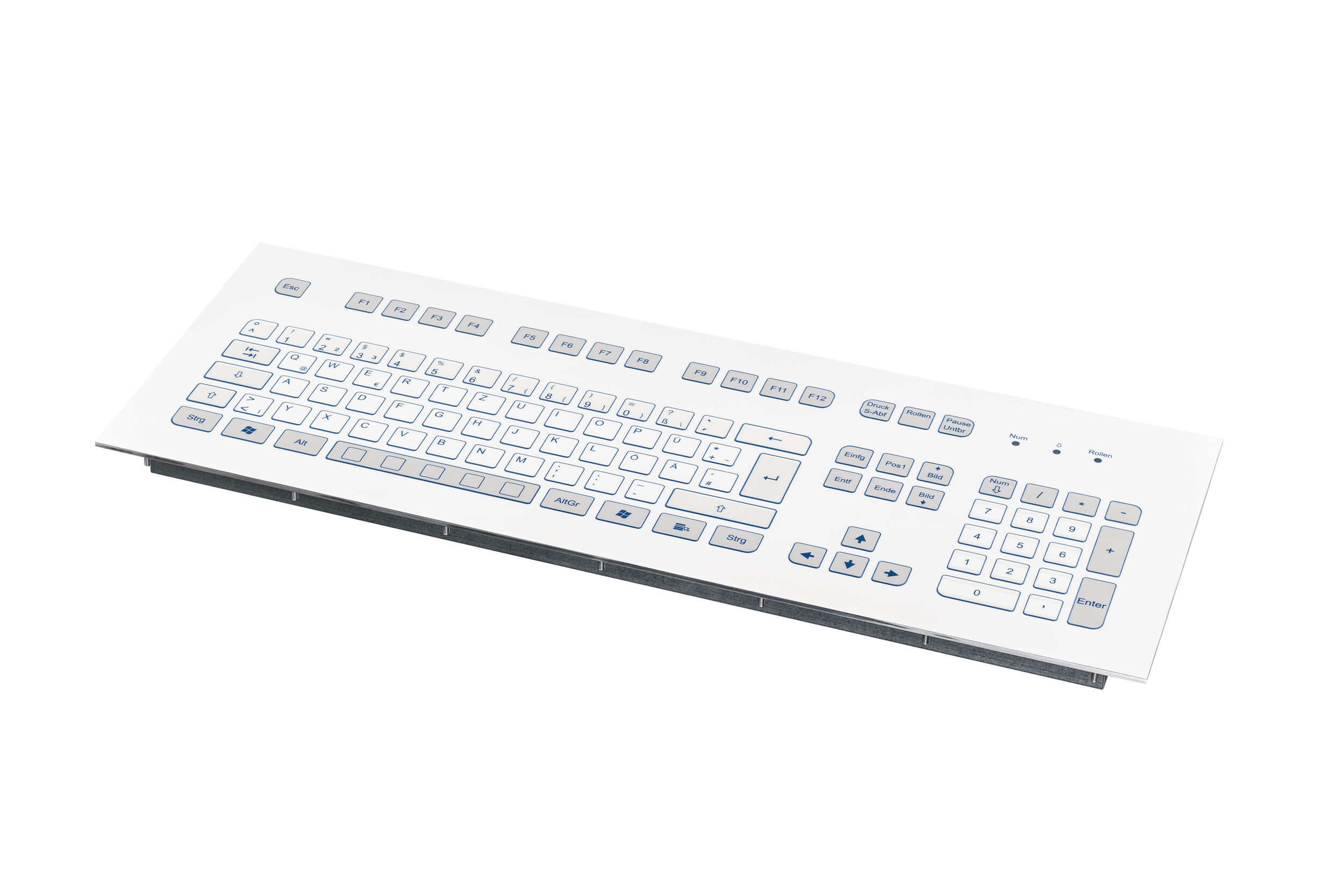

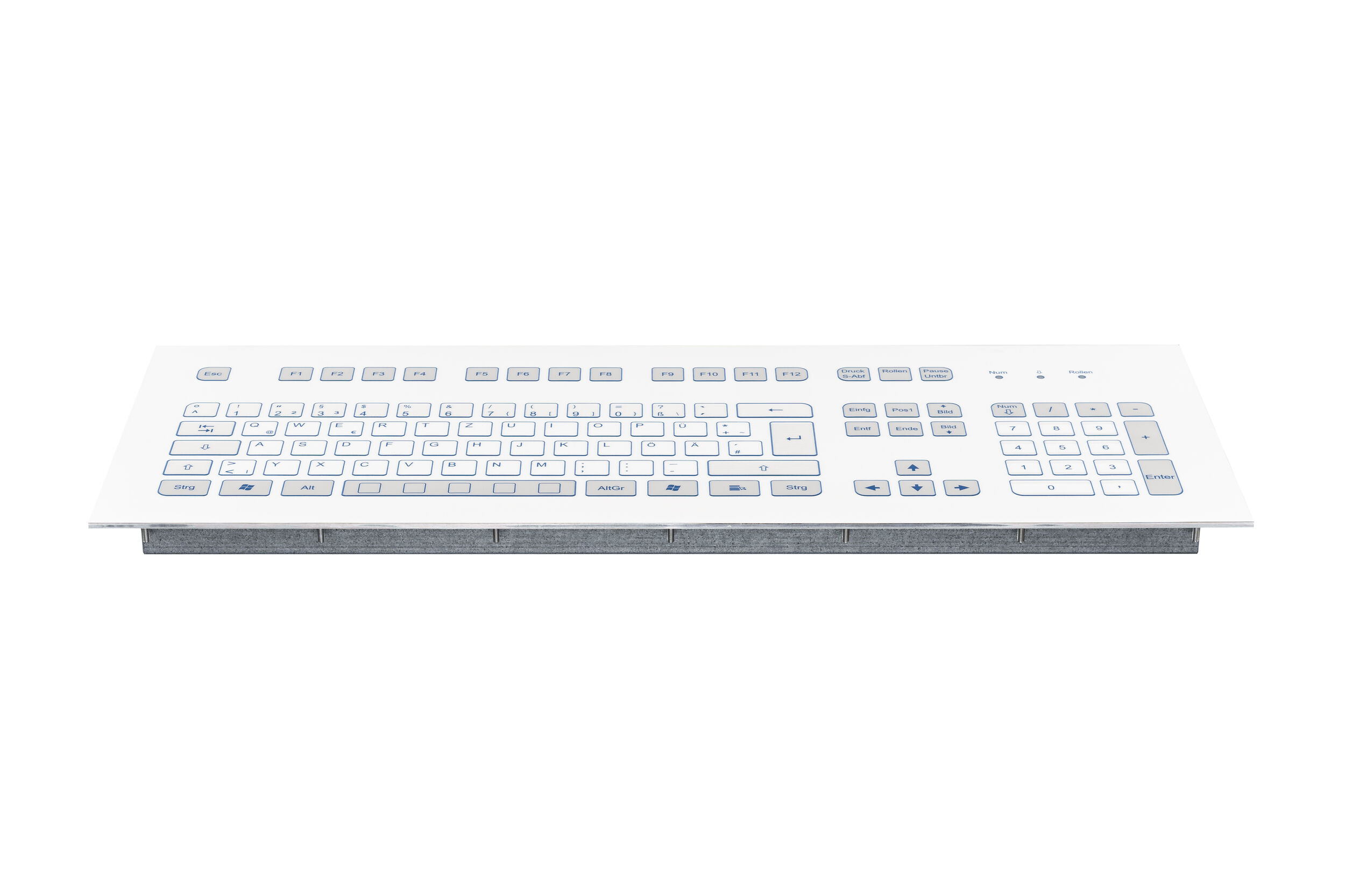

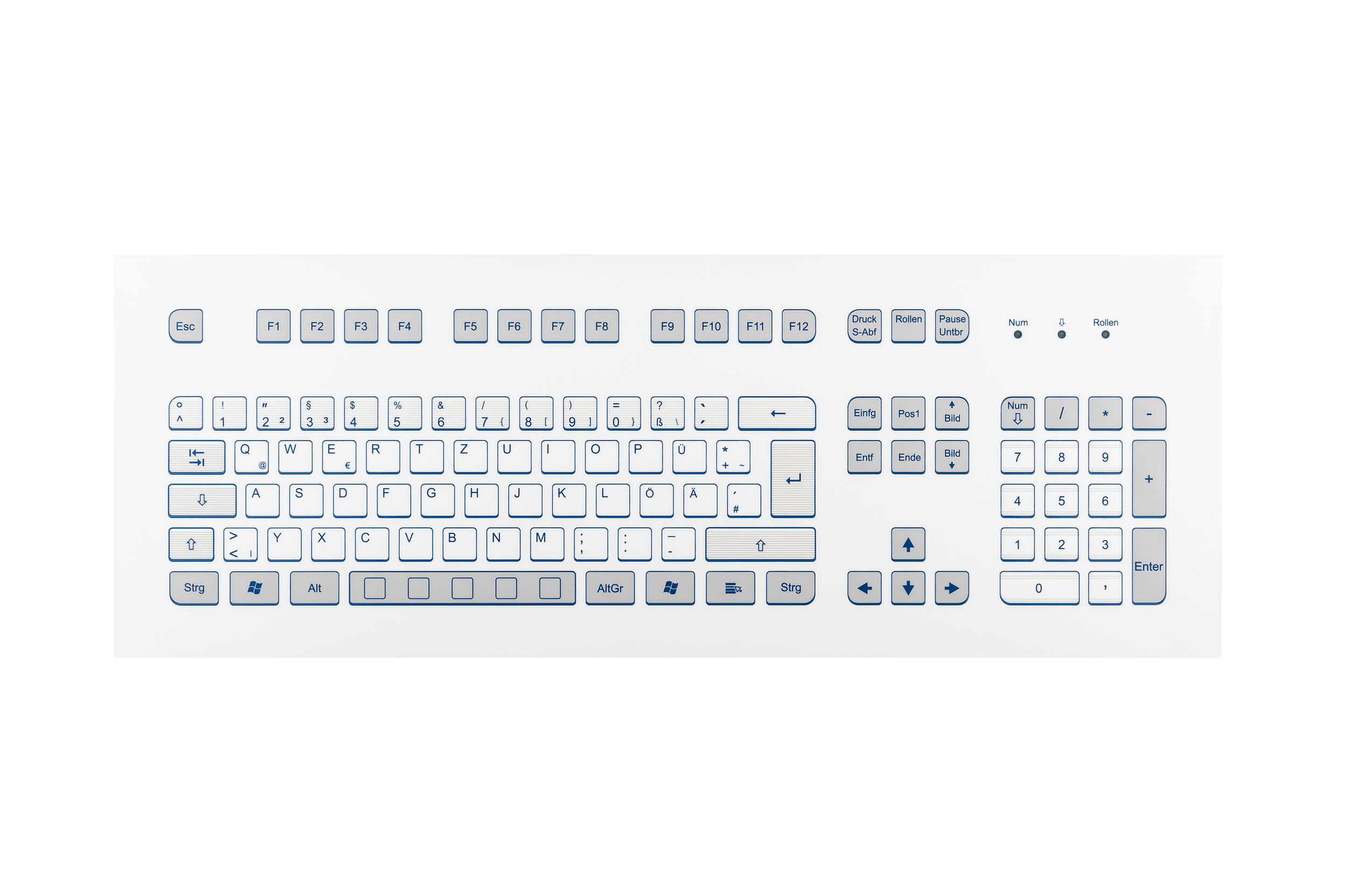

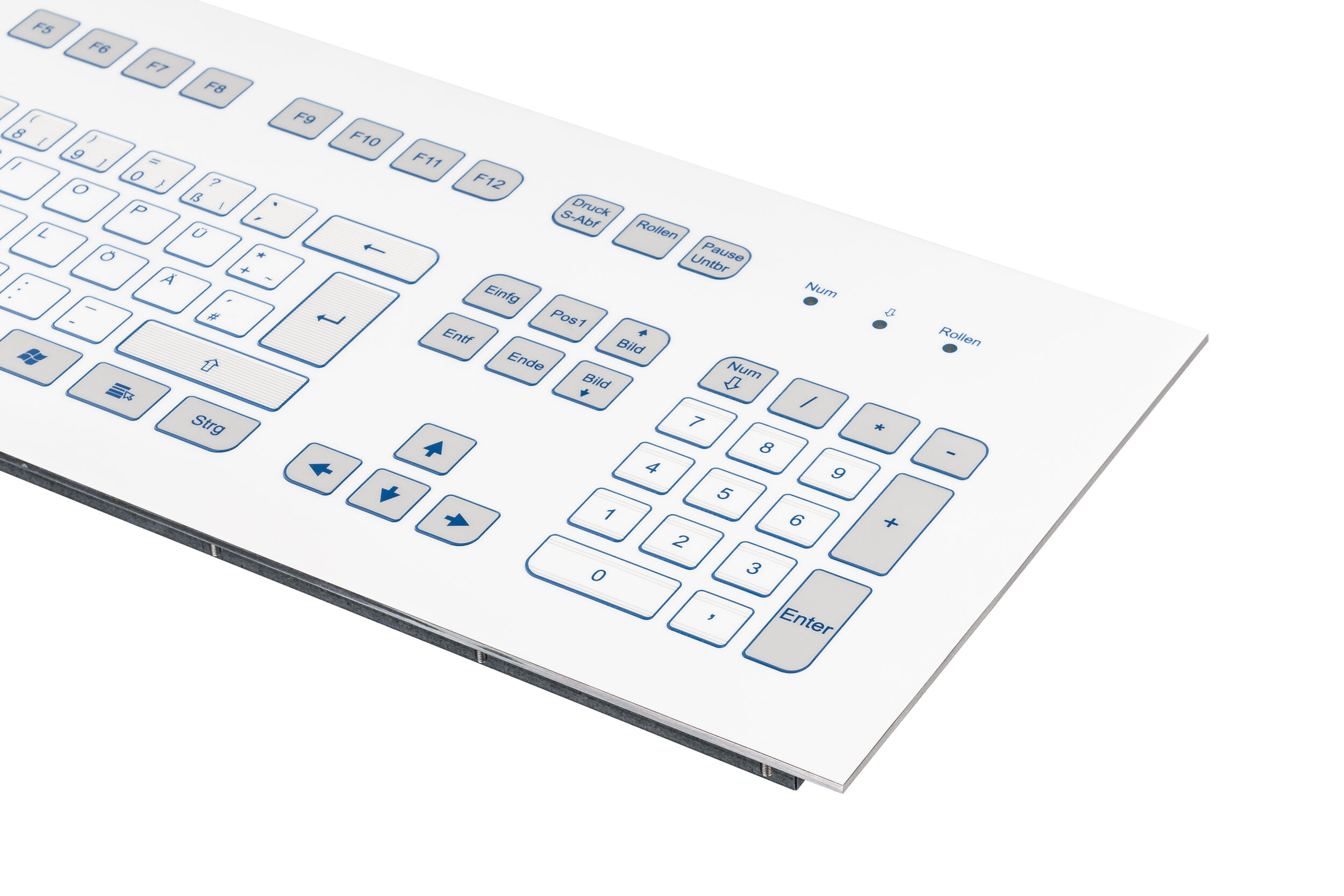

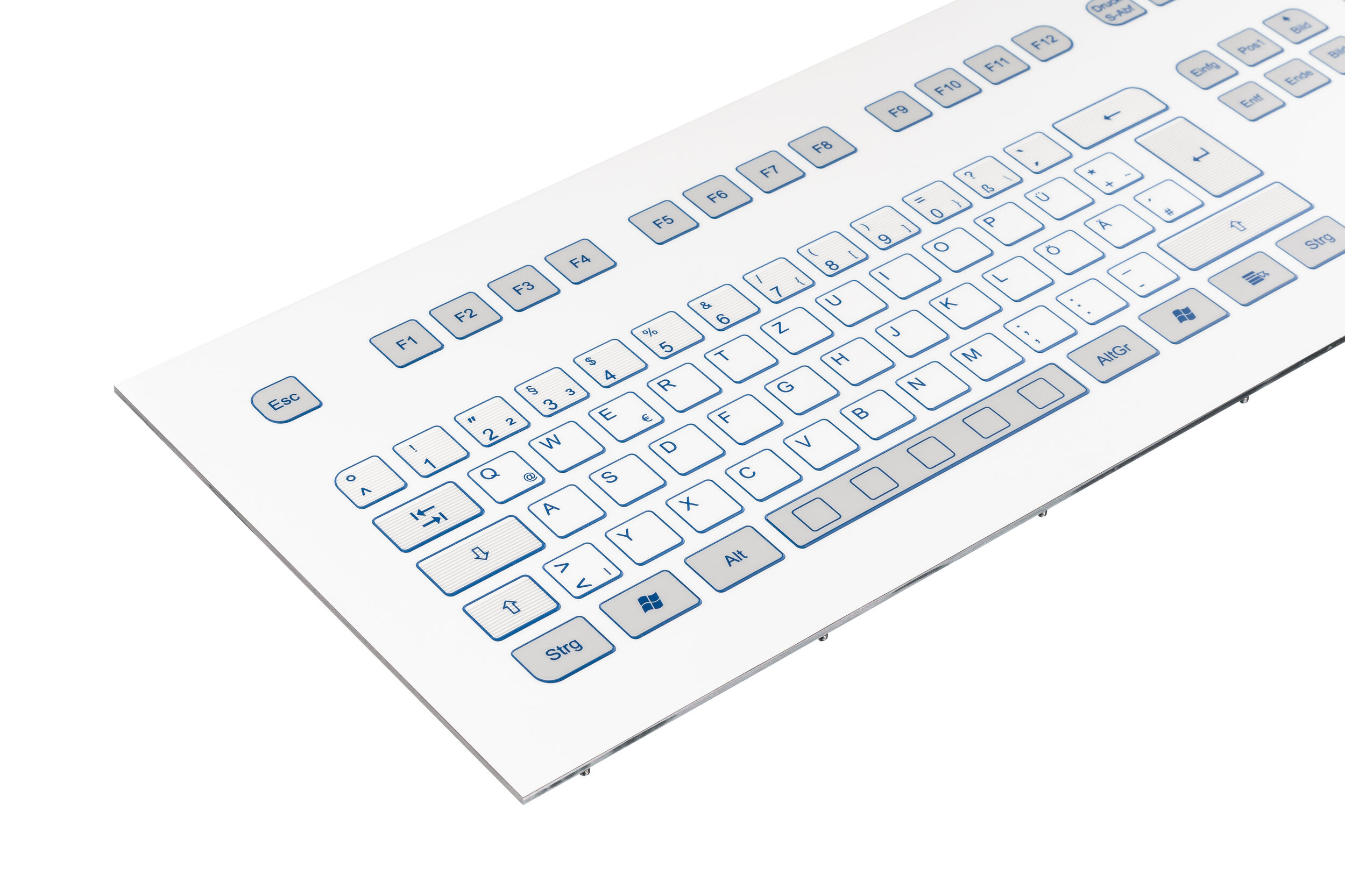

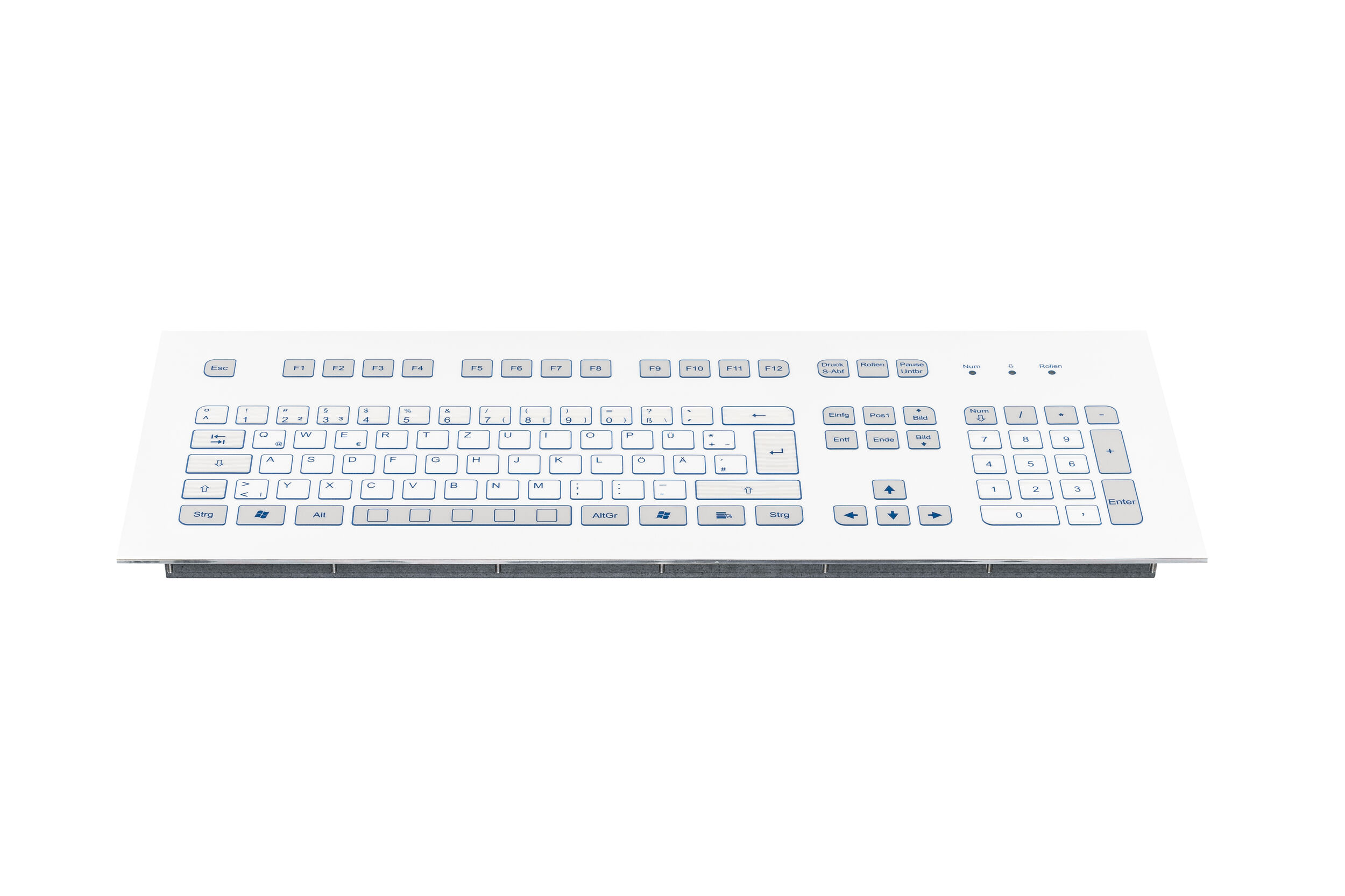

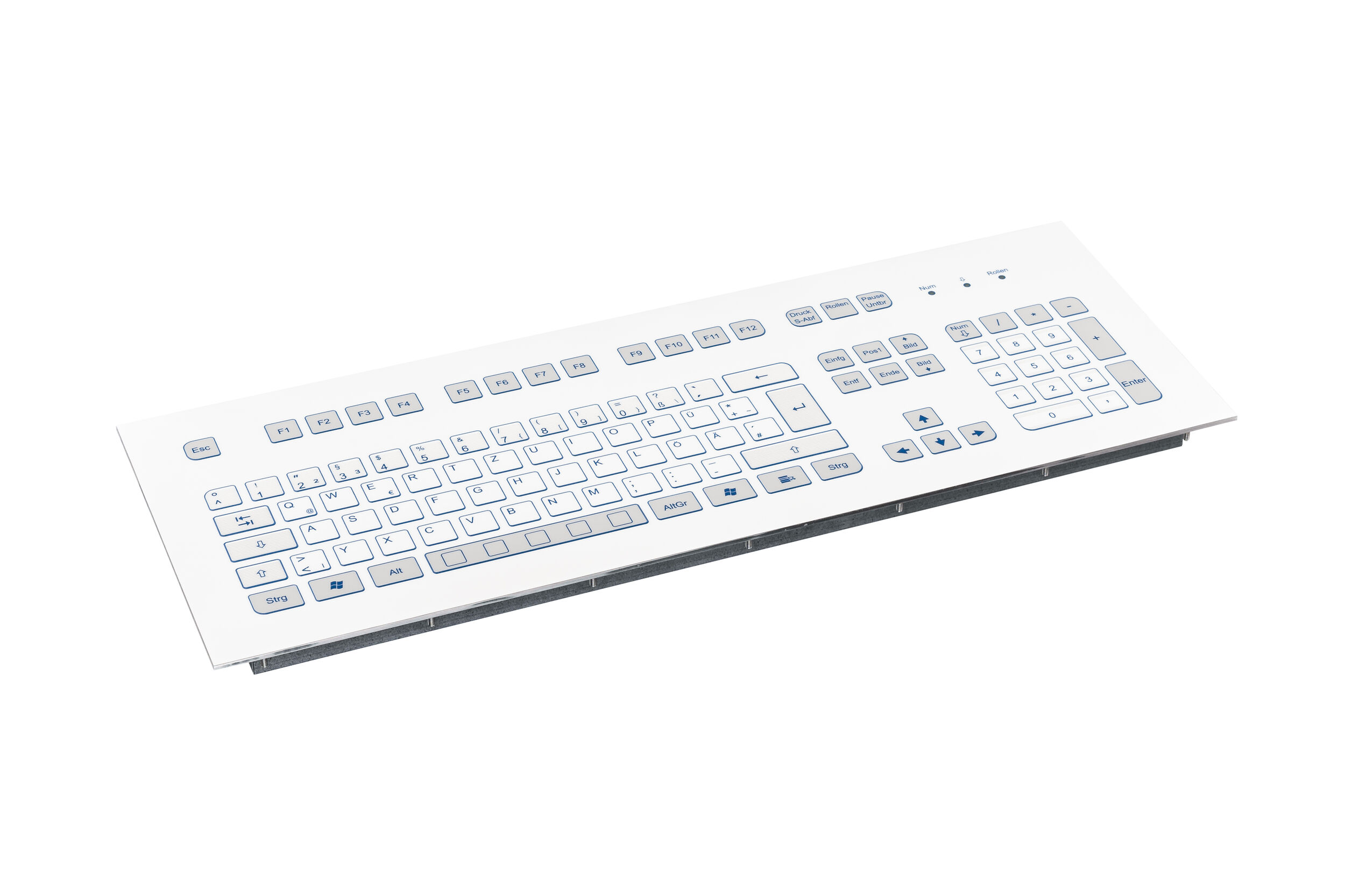

Industrial membrane-covered front-mounted keyboard with robust short-travel keys and numeric keypad

TKS Front‑Mount Membrane Keyboard is an industrial input device specifically designed for flush front‑panel integration, featuring short‑travel mechanical keys and a numeric keypad, with an embossed polyester front membrane. The numeric keypad accommodates high‑frequency data entry requirements, enhancing workflow efficiency. It is widely used in industrial control panels, machinery operation consoles, automated production lines, and data acquisition terminals – wherever high protection ratings, front‑panel integration, and numeric input are required.

This keyboard seamlessly combines a compact design, reliable protection, precise keys, and a numeric keypad – making it your ideal choice for efficient, stable data entry in demanding environments.

ADVANTAGES

  • Robust panel-mount keyboard for frontal integration
  • Threaded studs on the reverse side ensure an easy integration
  • Robust polyester front foil with key embossment
  • IP65 resistant against dirt, dust and liquids
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.
+852 3461 9789

Order Data*

LAYOUTShort NameOrder NumberColor
US
TKS-105c-MODUL-USB-US
KS18273
white
product details

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Front mounting
    Guarantee / Warranty:
    2 years
    lawful warranty

    Keys:

    Key stroke:
    0.3
    Operating force:
    2.60 N
    Switching technology:
    short stroke

    Material:

    Front material:
    aluminium
    Front finish:
    with decor foil
    Housing colour:
    white
    Housing material:
    galvanised sheet steel
    Housing Finish:
    galvanised
    Front thickness:
    2.5 mm

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    80°C
    min. Operating temperature:
    -25°C
    max. Operating temperature:
    70 °C

    Fastening:

    Number of fastening points:
    20
    Fastening type:
    Threaded bolt
    Thread:
    M3

    Product dimensions:

    Length (width):
    483 mm
    Width (depth):
    178 mm
    Height:
    23 mm
    Weight:
    1300 g

    Packaging dimensions:

    Length (width):
    590 mm
    Width (depth):
    325 mm
    Height:
    110 mm
    Weight:
    1900 g

  • INTERFACE:

    Wireless:
    -
    USB-Type:
    USB-A
    USB-Compliance:
    USB 2.0 compliant
    Supported operating systems:
    USB 2.0 supporting OS
    Cable length:
    2000 mm
    Cable color:
    grey

    Electrical data:

    max. ampere consumption:
    35 mA
    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65 frontside

    Declarations & Certifications

    • CE

    • EMV*

    • RoHS*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads

Product description

Industrial TKS keyboard, front‑mount. This keyboard, part of the InduDur brand family, features an embossed polyester front membrane and a rugged housing, equipped with short‑travel mechanical keys and a numeric keypad – specifically designed for industrial equipment requiring front‑panel integration.

Rear‑mounting studs enable quick and easy installation, while the IP65 rating provides resistance against dirt, dust, and liquids for reliable operation in harsh environments. Customisation options are available (such as company logo printing and key layout adjustments) to meet specific requirements.
