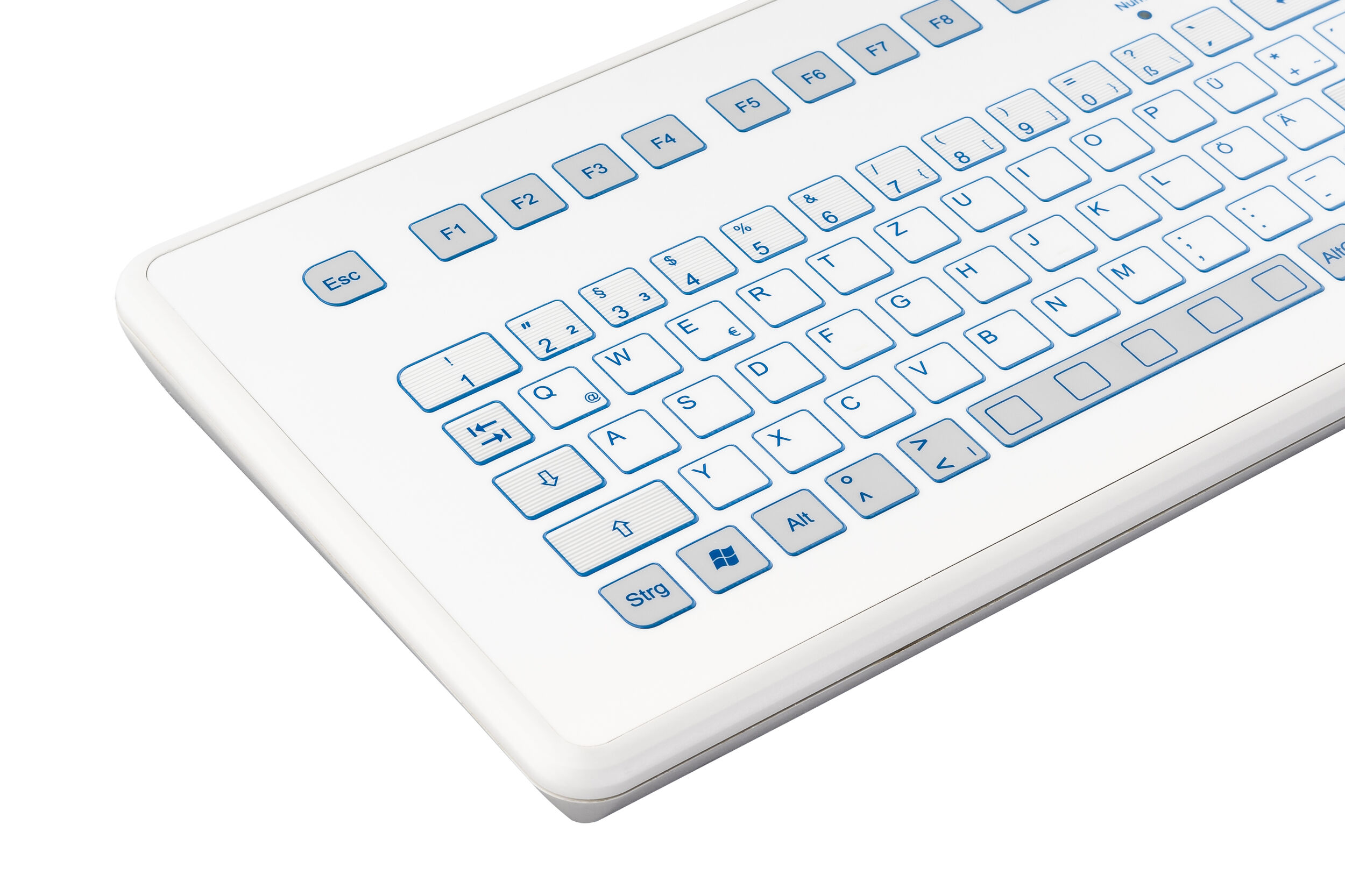

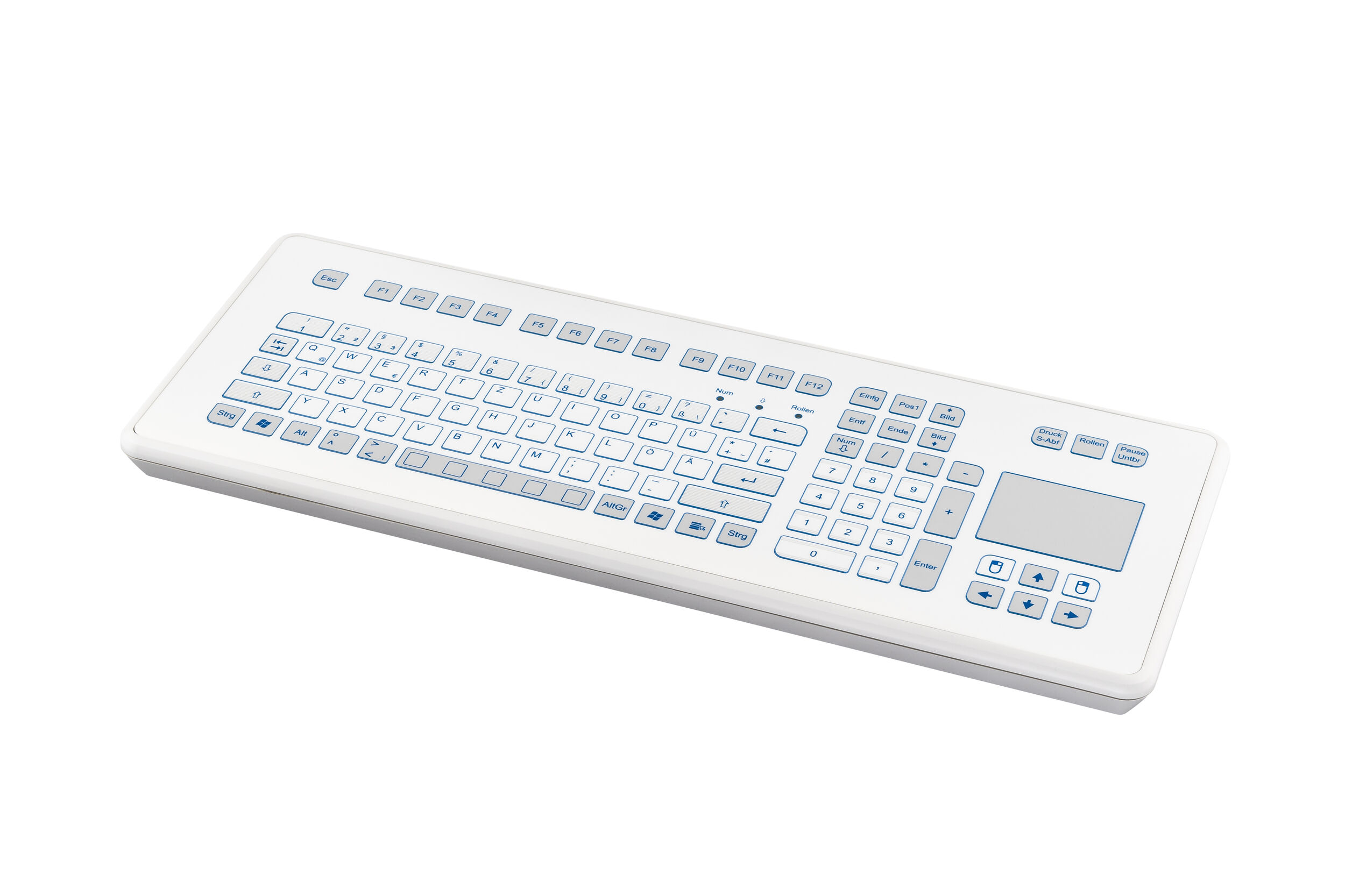

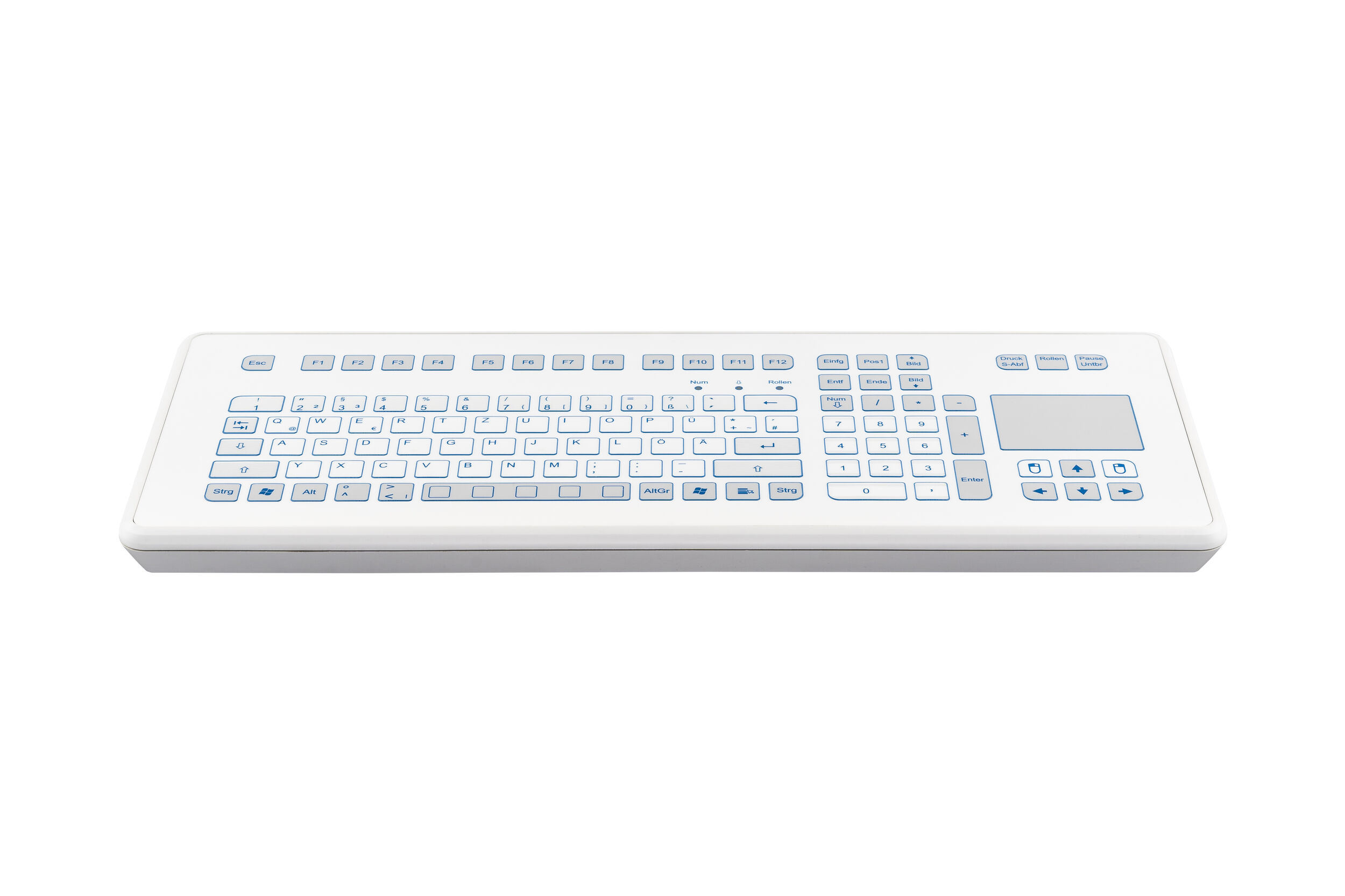

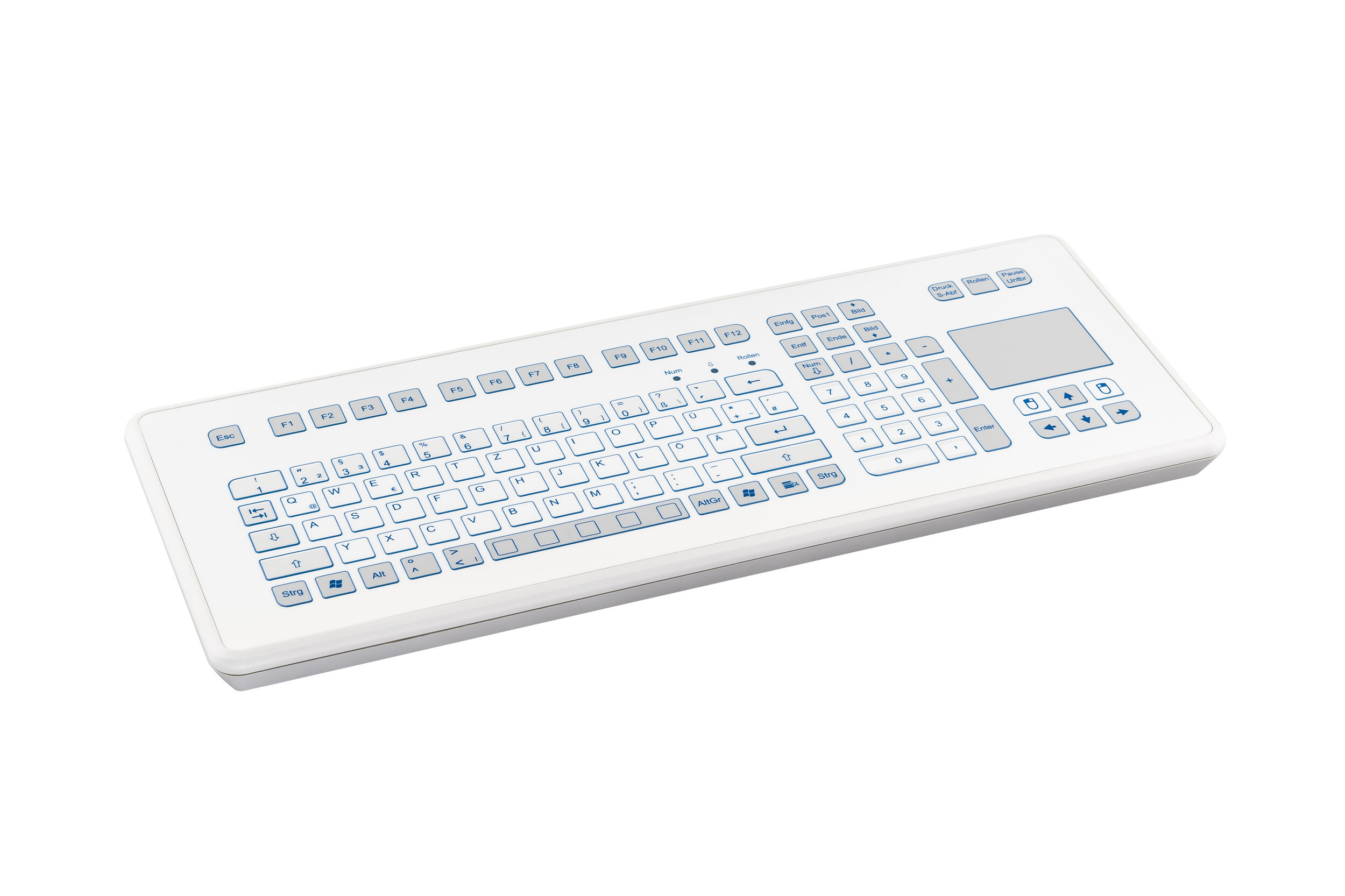

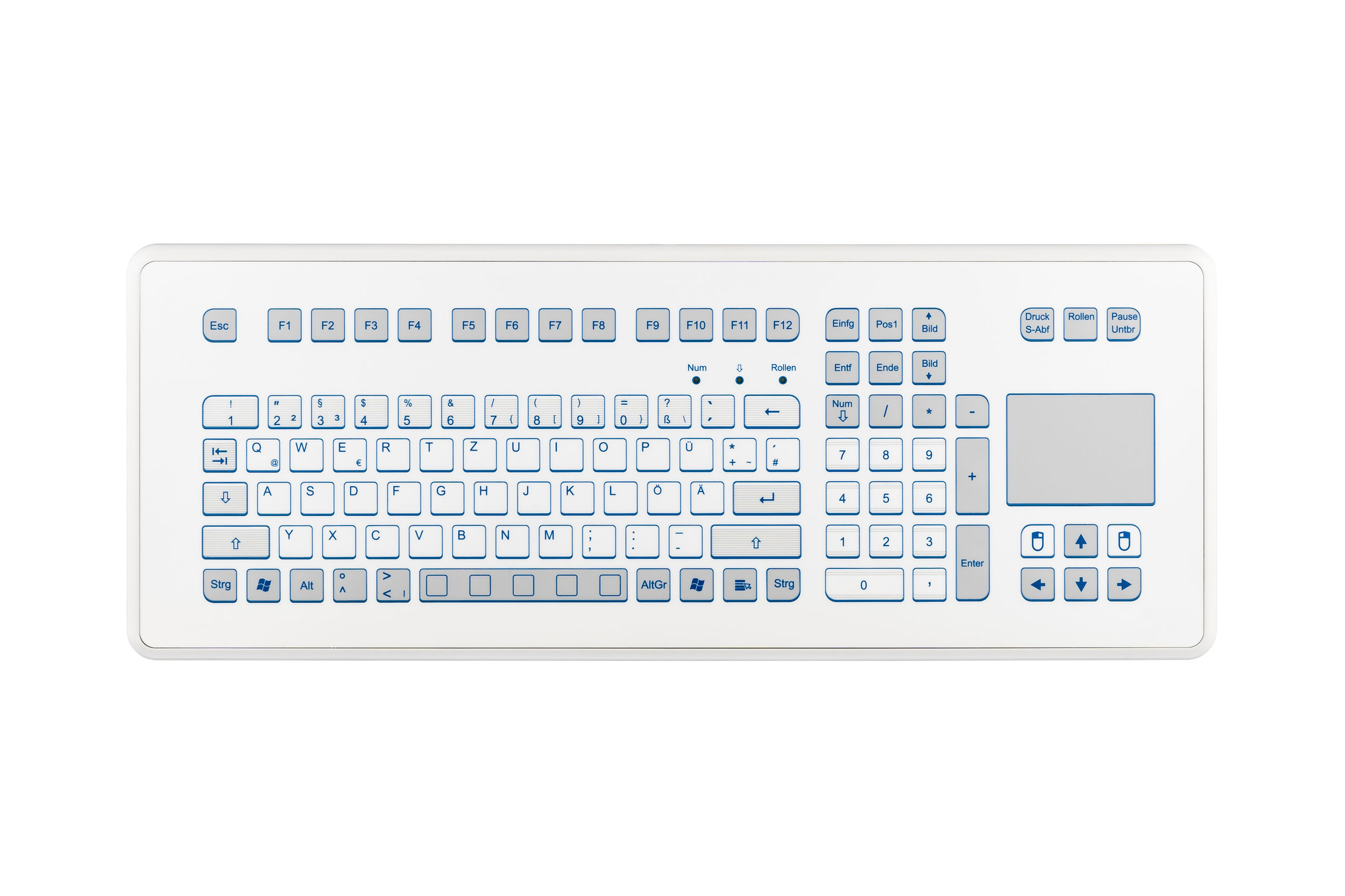

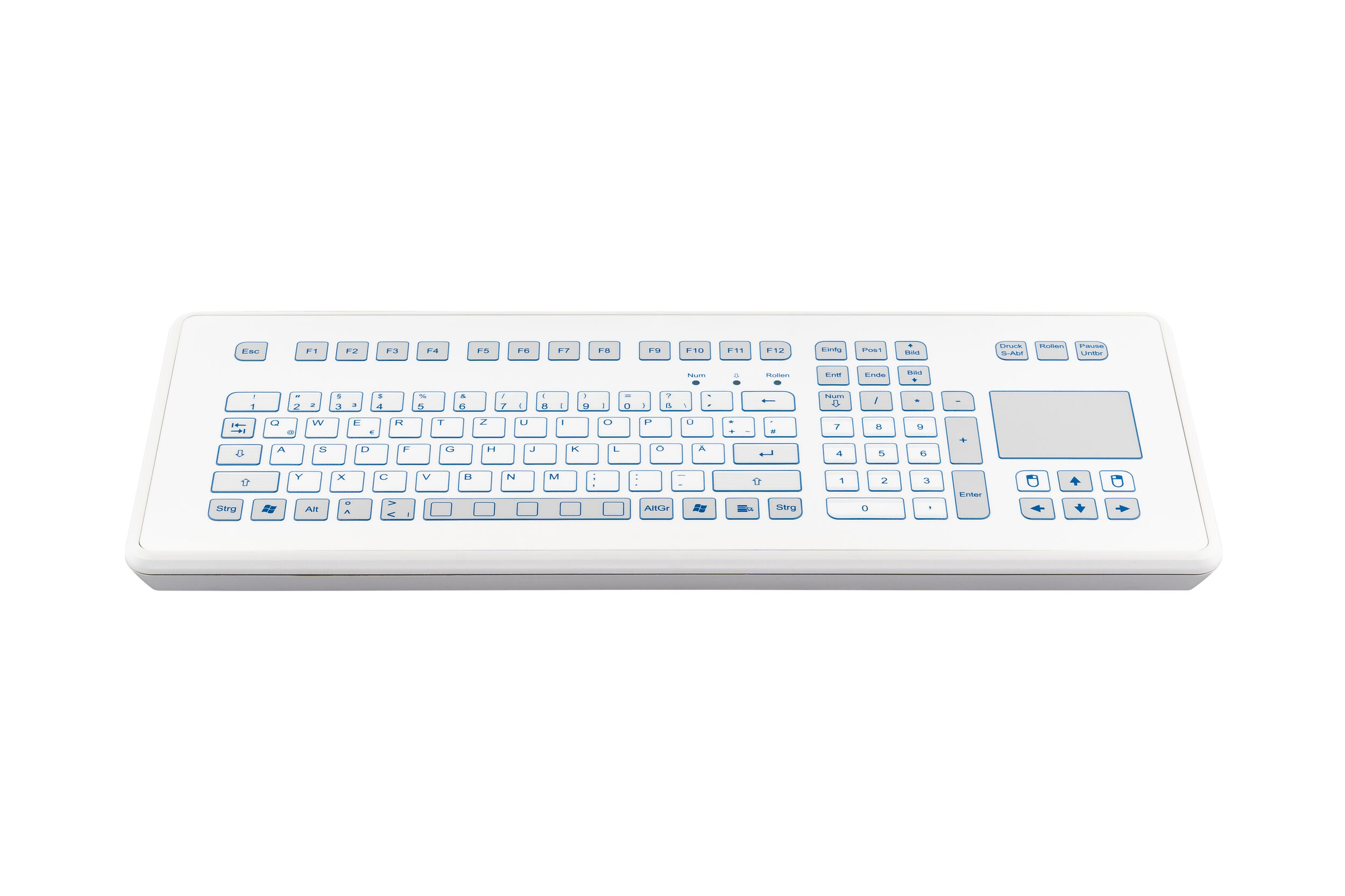

Foil-covered desktop keyboard with robust short-travel keys and touchpad

Industrial TKS desktop keyboard with an integrated touchpad.

ADVANTAGES

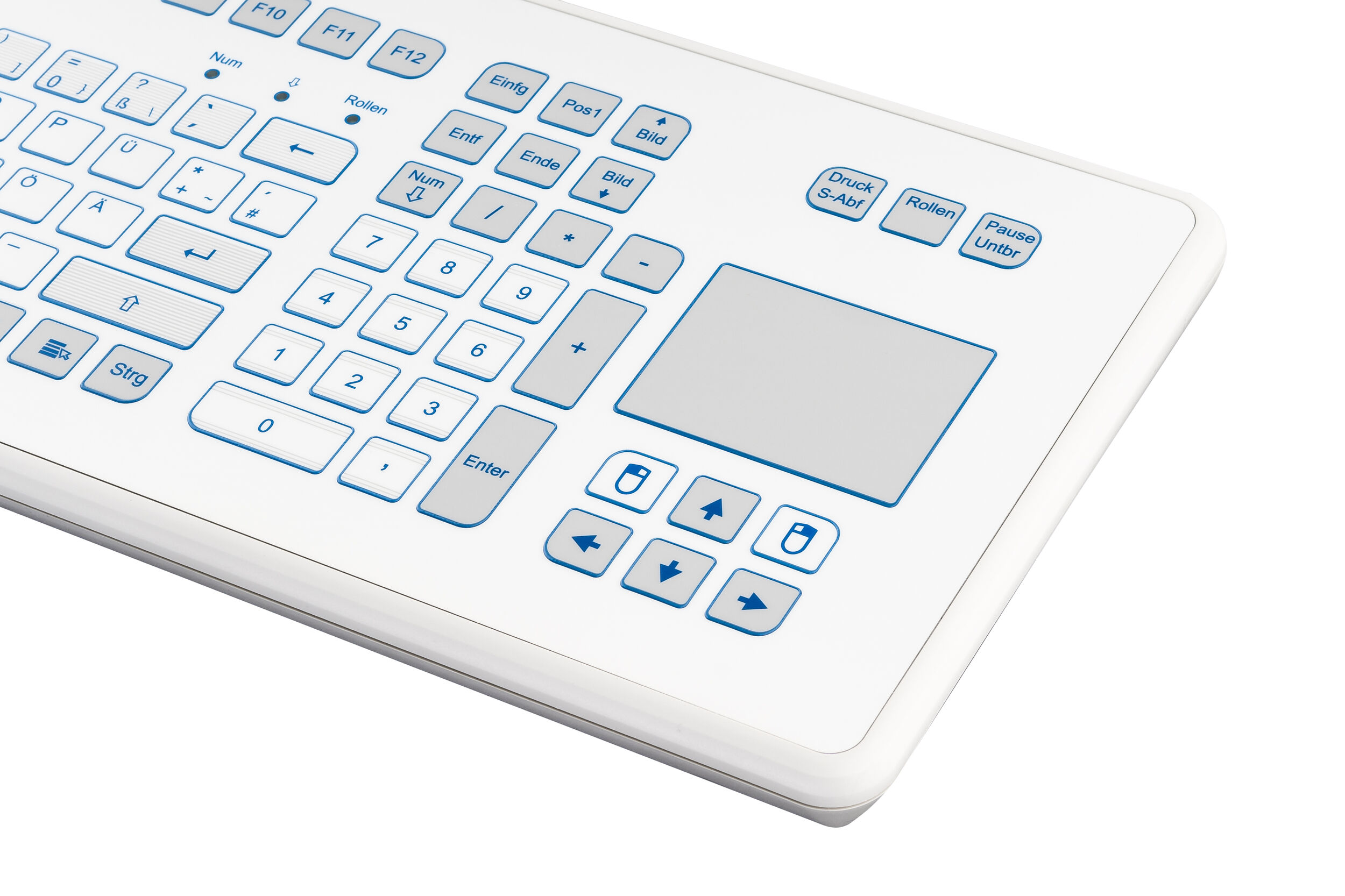

  • Integrated capacitive touchpad
  • Robust polyester front foil with key embossment
  • Rugged plastic enclosure
  • IP65 resistant against dirt, dust and liquids
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.

Order Data*

LAYOUTShort NameOrder NumberColor
US
TKS-105c-TOUCH-KGEH-USB-US
KS18241
white
product details

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Desktop Keyboard
    Guarantee / Warranty:
    2 years
    lawful warranty

    Keys:

    Key stroke:
    0.3
    Operating force:
    2.60 N
    Switching technology:
    short stroke

    Technical data mouse replacement:

    Touchpad:
    capacitive
    Width:
    65 mm
    Length:
    49 mm

    Material:

    Front material:
    aluminium
    Front finish:
    with decor foil
    Housing colour:
    white
    Housing material:
    plastic
    Front thickness:
    2.5 mm

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    80°C
    min. Operating temperature:
    0°C
    max. Operating temperature:
    70 °C

    Fastening:

    Fastening type:
    -

    Product dimensions:

    Length (width):
    483 mm
    Width (depth):
    185 mm
    Height:
    34.90 mm
    Weight:
    1400 g

    Packaging dimensions:

    Length (width):
    590 mm
    Width (depth):
    325 mm
    Height:
    110 mm
    Weight:
    1750 g

  • INTERFACE:

    Wireless:
    -
    USB-Type:
    USB-A
    USB-Compliance:
    USB 2.0 compliant
    Supported operating systems:
    USB 2.0 supporting OS
    Cable length:
    2000 mm
    Cable color:
    grey

    Electrical data:

    max. ampere consumption:
    133 mA
    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65

    Declarations & Certifications

    • CE

    • EMV*

    • RoHS*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads
