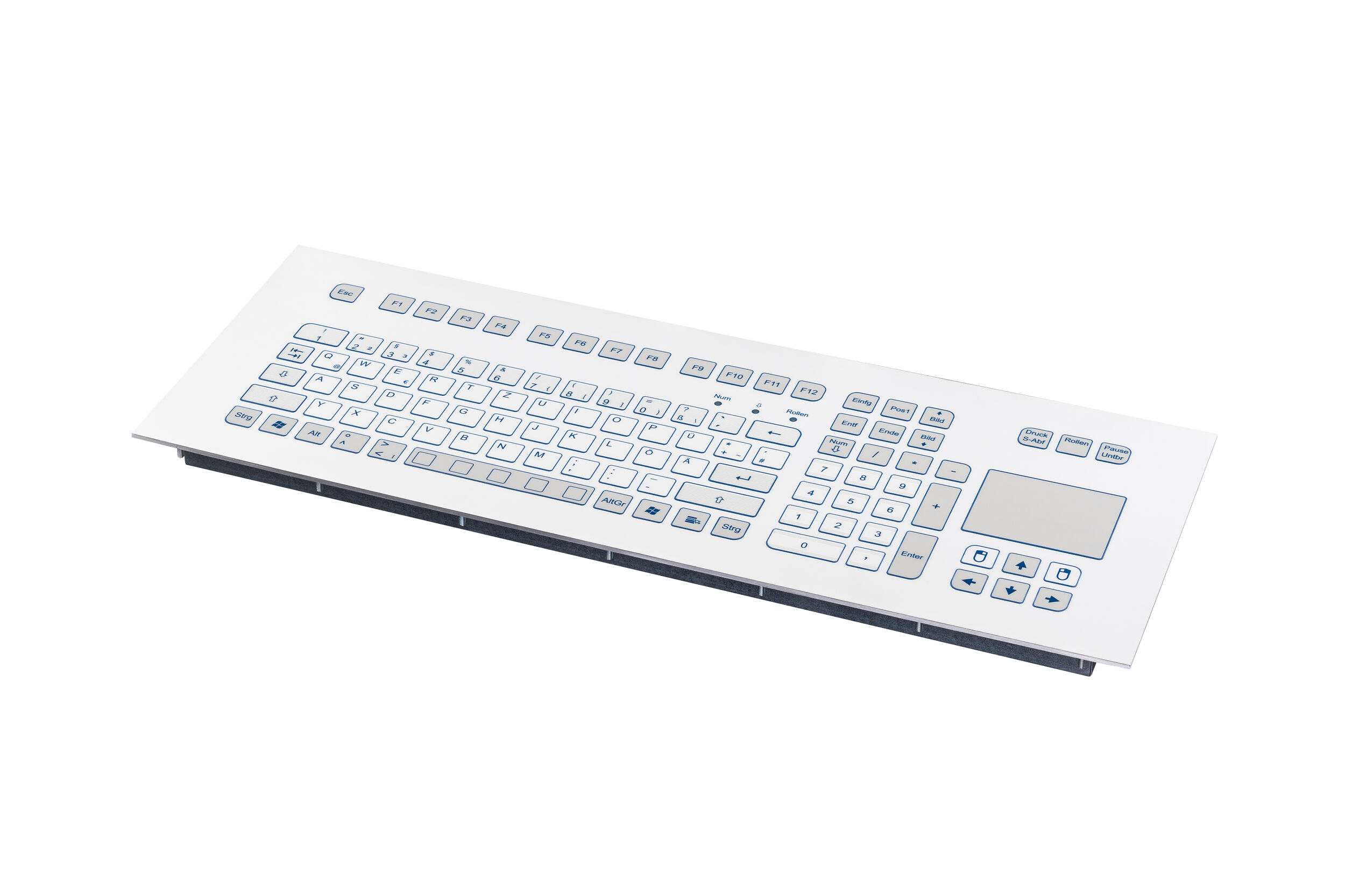

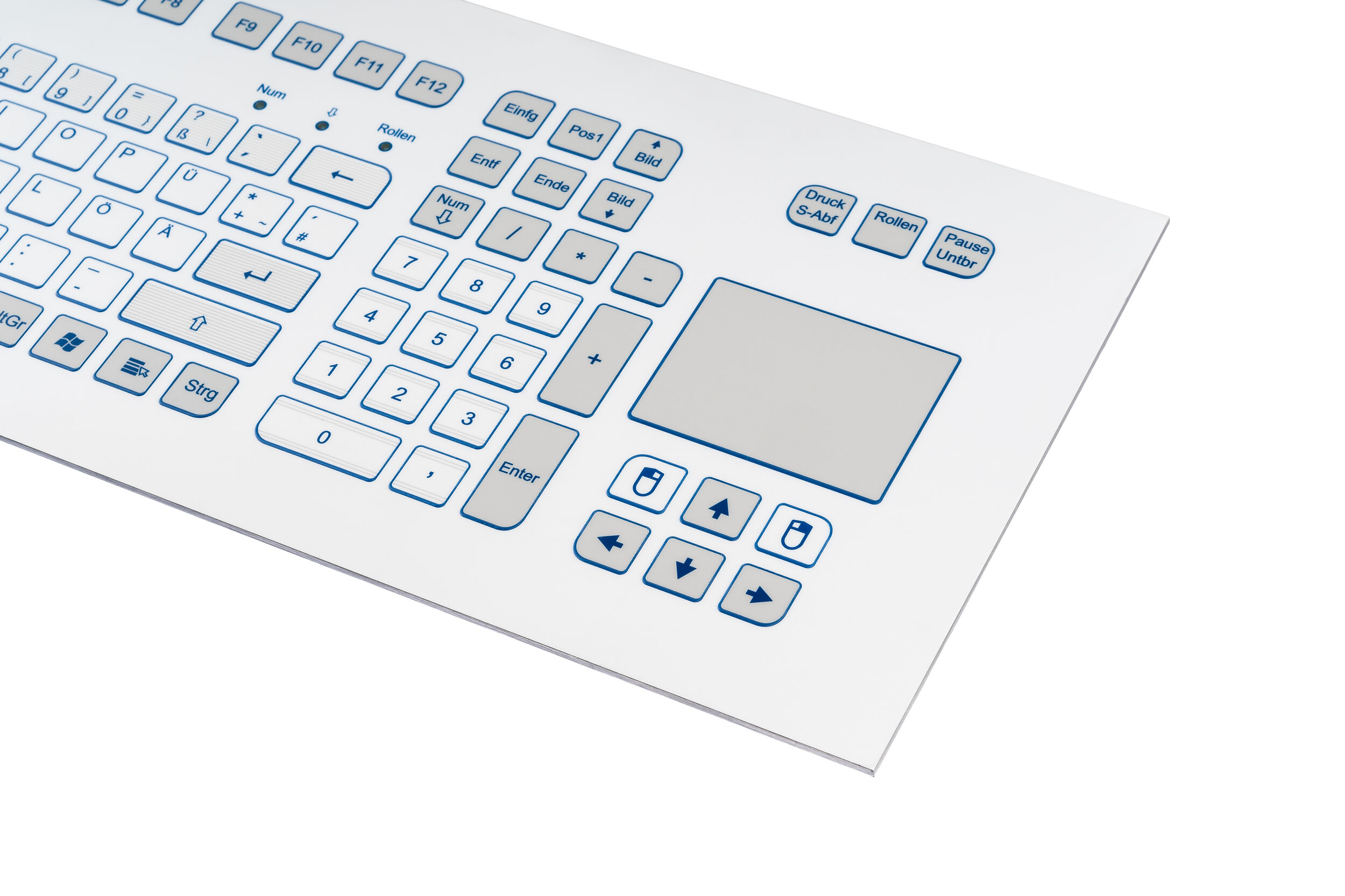

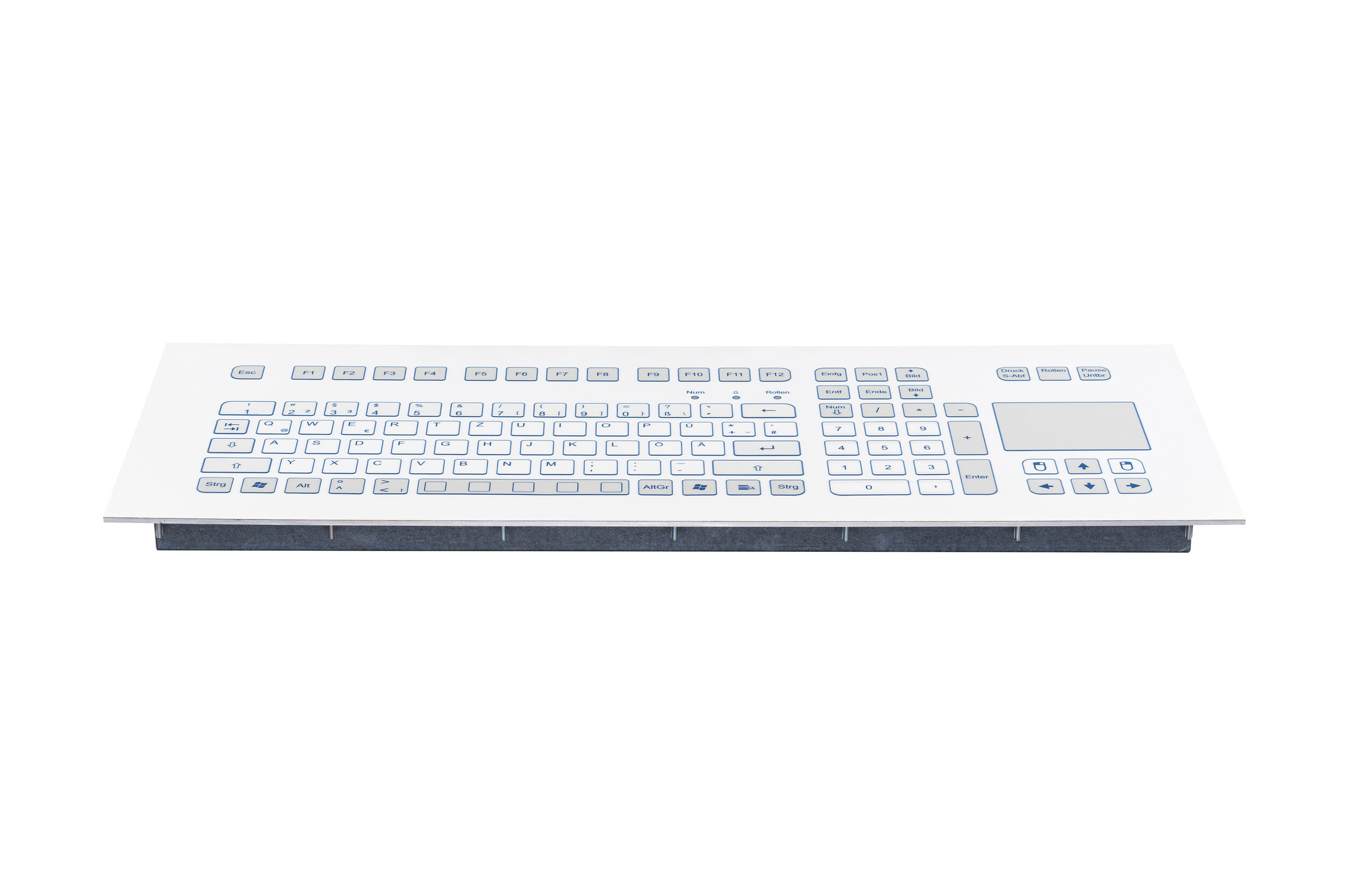

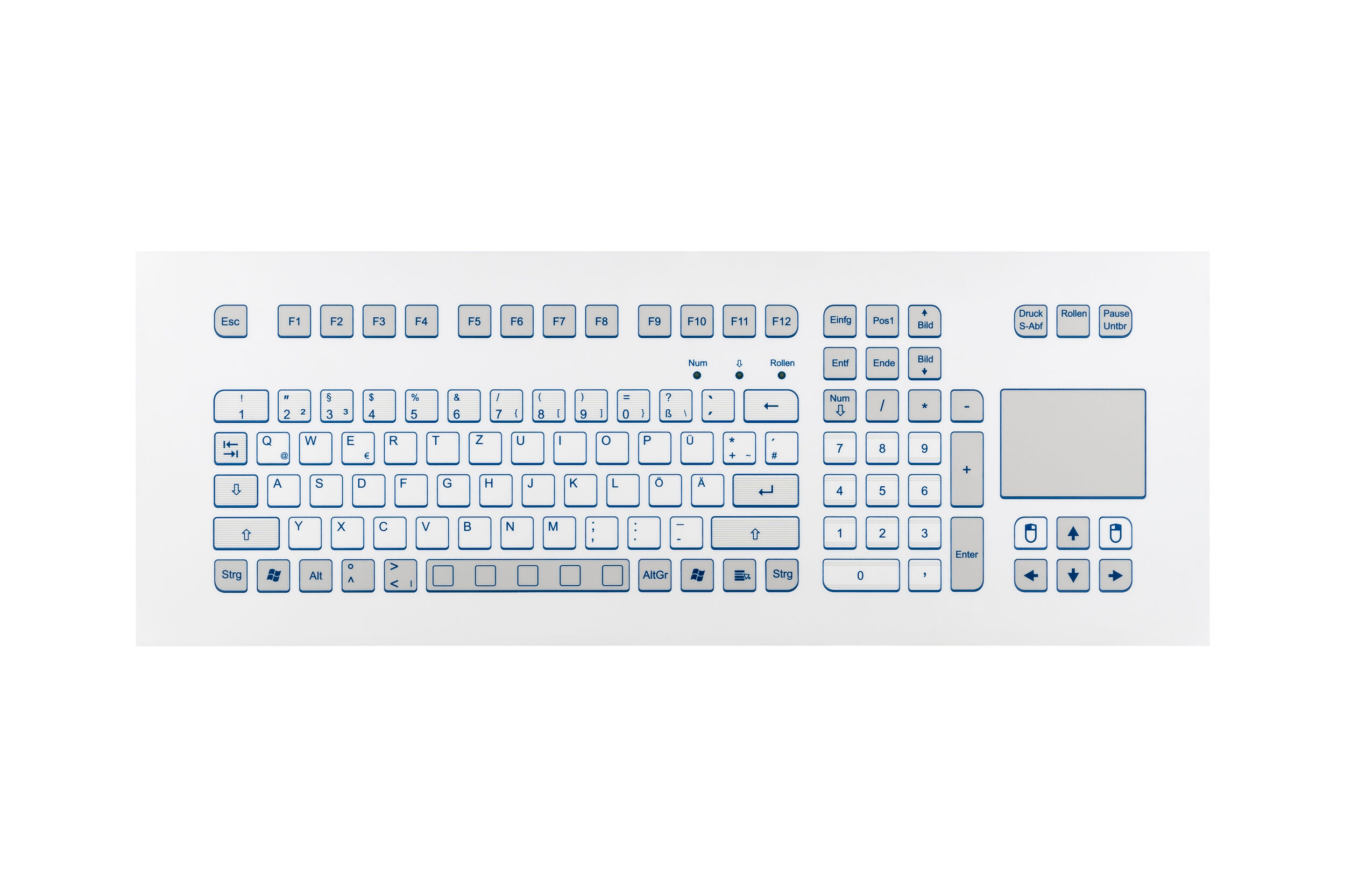

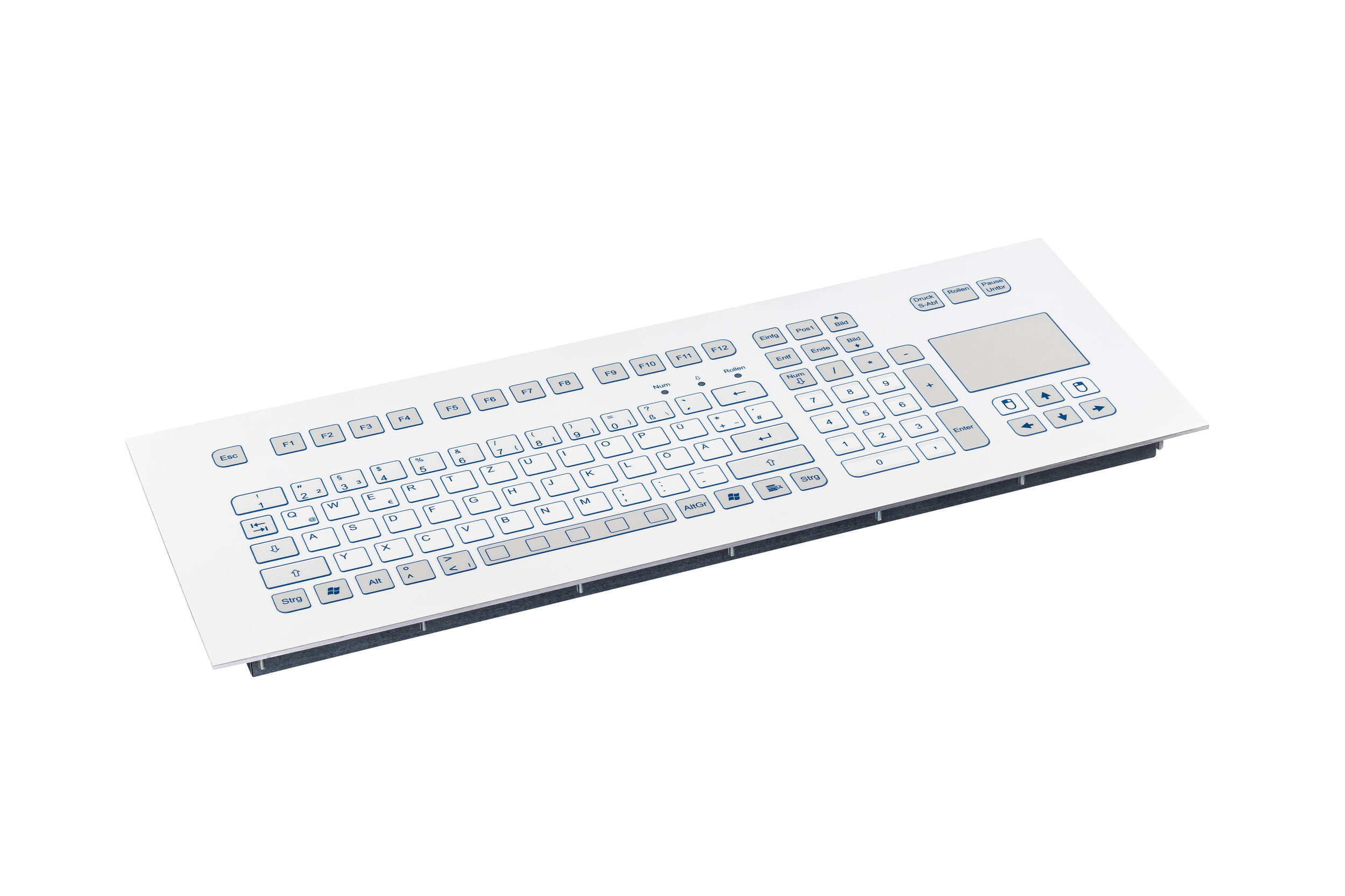

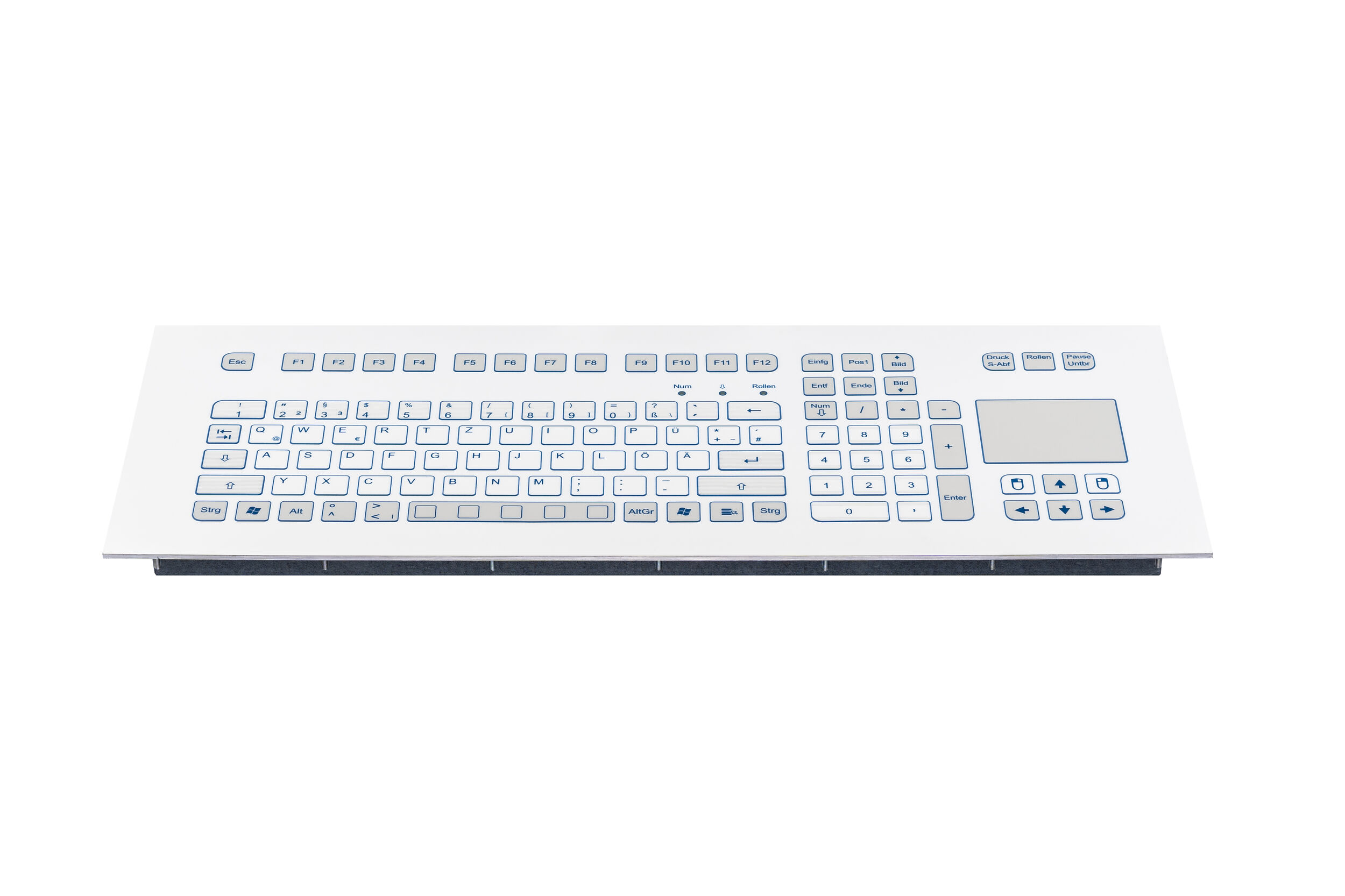

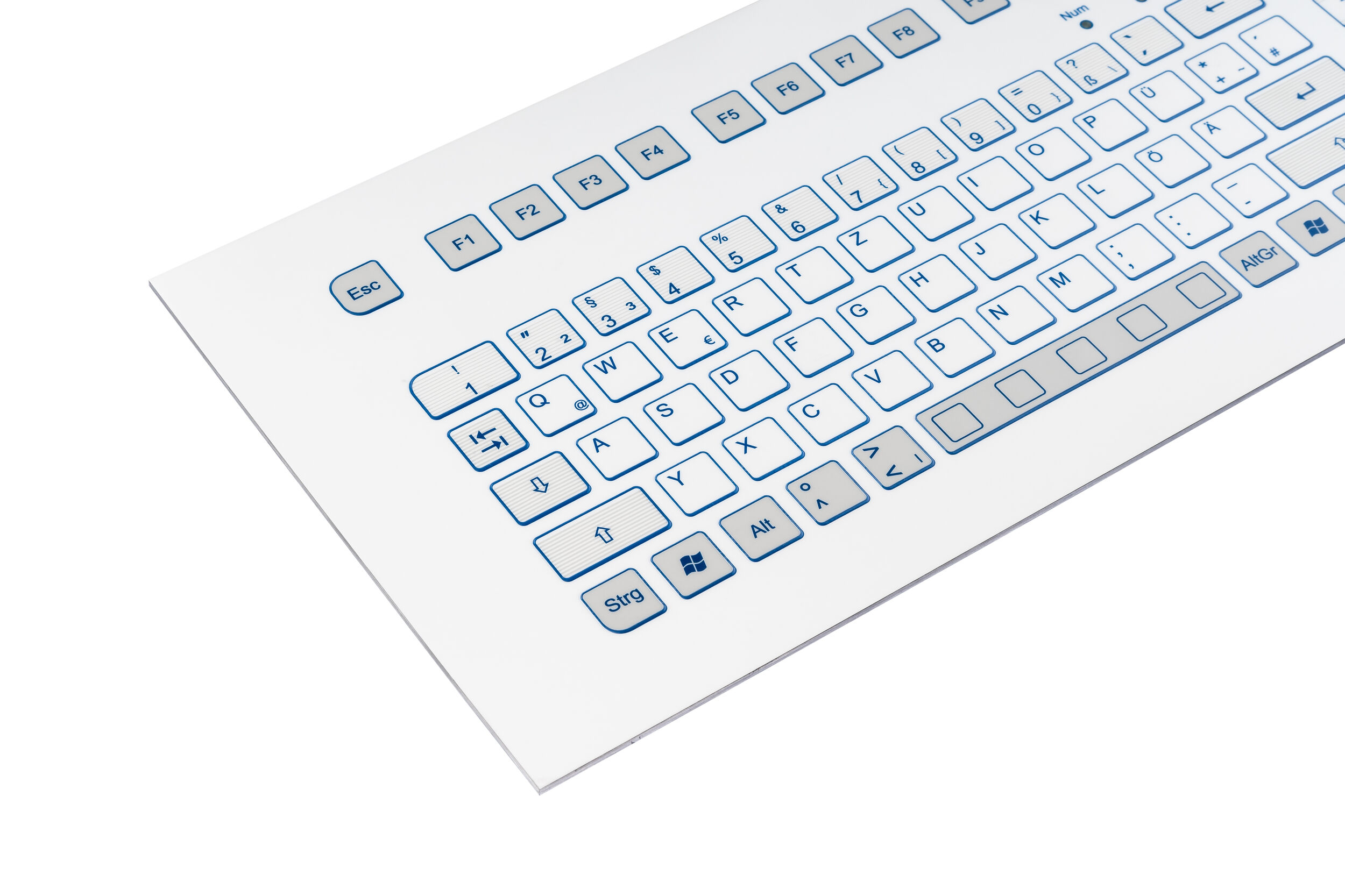

Foil-covered front-mounted keyboard with robust short-travel keys and touchpad

TKS Front‑Mount Membrane Keyboard is an industrial input device specifically designed for flush front‑panel integration, featuring short‑travel mechanical keys, a numeric keypad, and a capacitive touchpad. With a tactile‑printed polyester front membrane, the keys provide distinct tactile feedback for precise operation even when wearing gloves. It is widely used in industrial control panels, machinery operation consoles, automated production lines, data acquisition terminals, and outdoor self‑service terminals – wherever high protection ratings, front‑panel integration, numeric input, and convenient cursor control are required. An optional edge protection version is particularly suitable for harsh environments where mechanical impact or frequent contact is a concern.

This keyboard seamlessly combines rugged protection, convenient installation, precise keys, numeric input, and an integrated touchpad – making it your ideal choice for efficient, stable operation in demanding environments.

ADVANTAGES

  • Industrial TKS keyboard for front-side integration with integrated touchpad
  • Integrated capacitive touchpad
  • Robust polyester front foil with haptic printing
  • IP65 resistant against dirt, dust and liquids
  • Version with edge protection available optionally.
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.
+852 3461 9789

Order Data*

LAYOUTShort NameOrder NumberColor
US
TKS-105c-TOUCH-MODUL-USB-US
KS18285
white
product details

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Front mounting
    Guarantee / Warranty:
    2 years
    lawful warranty

    Keys:

    Key stroke:
    0.3
    Operating force:
    2.60 N
    Switching technology:
    short stroke

    Technical data mouse replacement:

    Touchpad:
    capacitive
    Width:
    65 mm
    Length:
    49 mm

    Material:

    Front material:
    aluminium
    Front finish:
    with decor foil
    Housing colour:
    white
    Housing material:
    galvanised sheet steel
    Front thickness:
    2.5 mm

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    80°C
    min. Operating temperature:
    0°C
    max. Operating temperature:
    70 °C

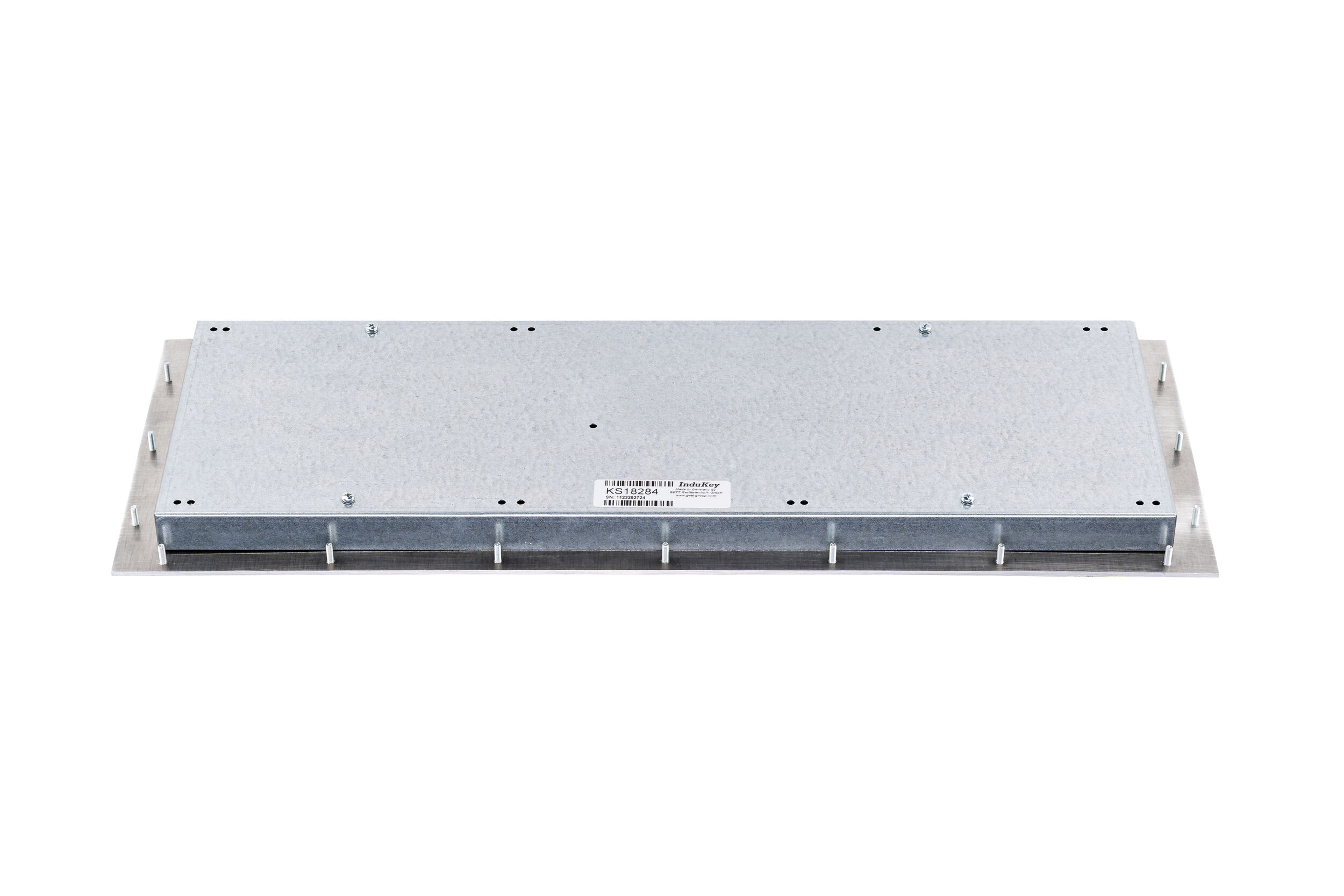

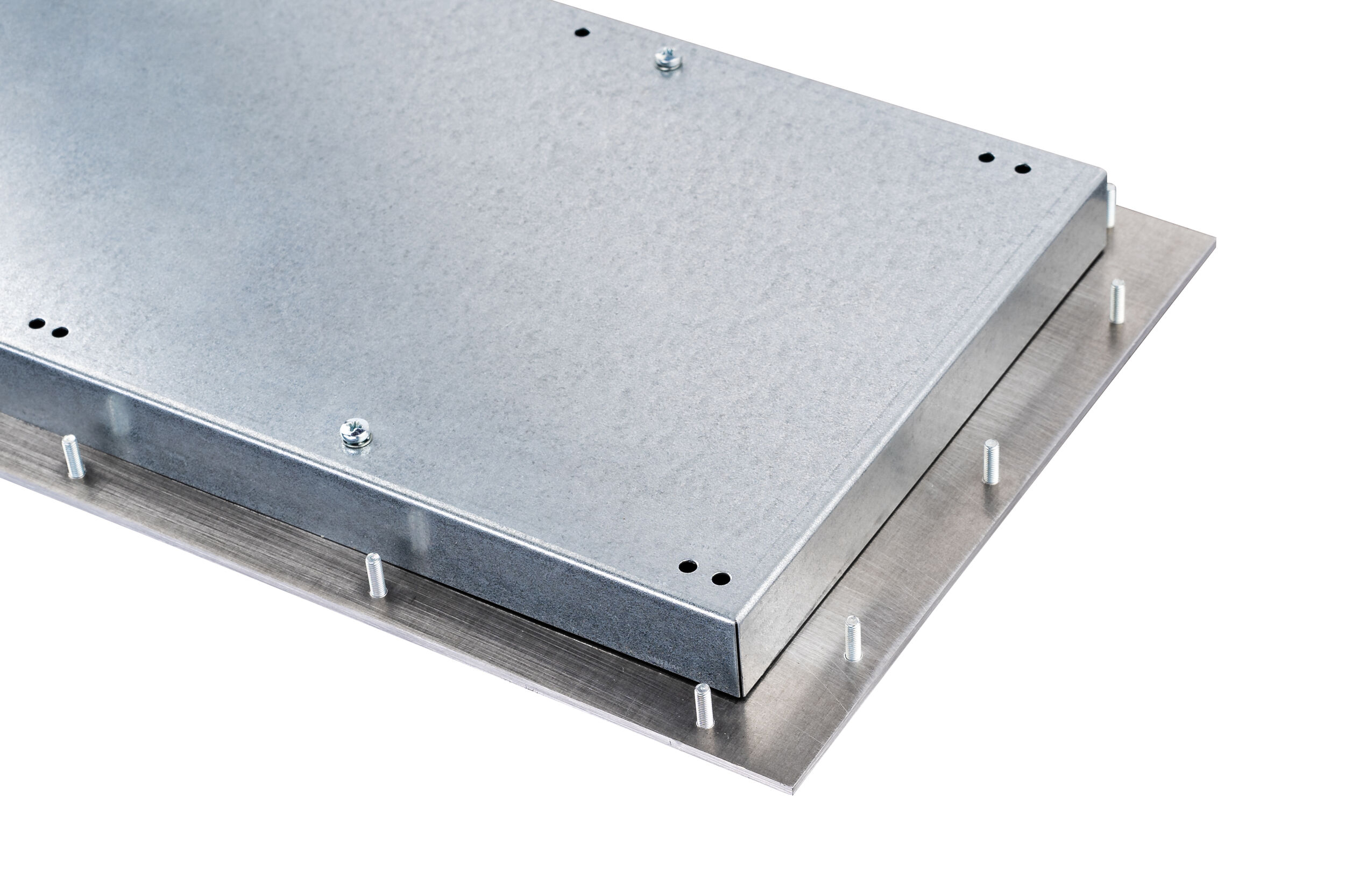

    Fastening:

    Number of fastening points:
    20
    Fastening type:
    Threaded bolt
    Thread:
    M3

    Product dimensions:

    Length (width):
    483 mm
    Width (depth):
    178 mm
    Height:
    28 mm
    Weight:
    1300 g

    Packaging dimensions:

    Length (width):
    590 mm
    Width (depth):
    325 mm
    Height:
    110 mm
    Weight:
    1900 g

  • INTERFACE:

    Wireless:
    -
    USB-Type:
    USB-A
    USB-Compliance:
    USB 2.0 compliant
    Supported operating systems:
    USB 2.0 supporting OS
    Cable length:
    2000 mm
    Cable color:
    grey

    Electrical data:

    max. ampere consumption:
    133 mA
    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65 frontside

    Declarations & Certifications

    • CE

    • EMV*

    • RoHS*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads

Product description

Industrial TKS Keyboard, Front‑Mount, with Integrated Touchpad. This keyboard, part of the InduDur brand family, features a tactile‑printed polyester front membrane and a rugged housing, equipped with short‑travel mechanical keys, a numeric keypad, and a capacitive touchpad – specifically designed for industrial equipment requiring front‑panel integration.

The keyboard is rated IP65 for resistance against dirt, dust, and liquids, ensuring reliable operation in harsh environments. An edge protection version is available as an option. Customisation options are offered (such as company logo printing and key layout adjustments) to meet specific requirements.
