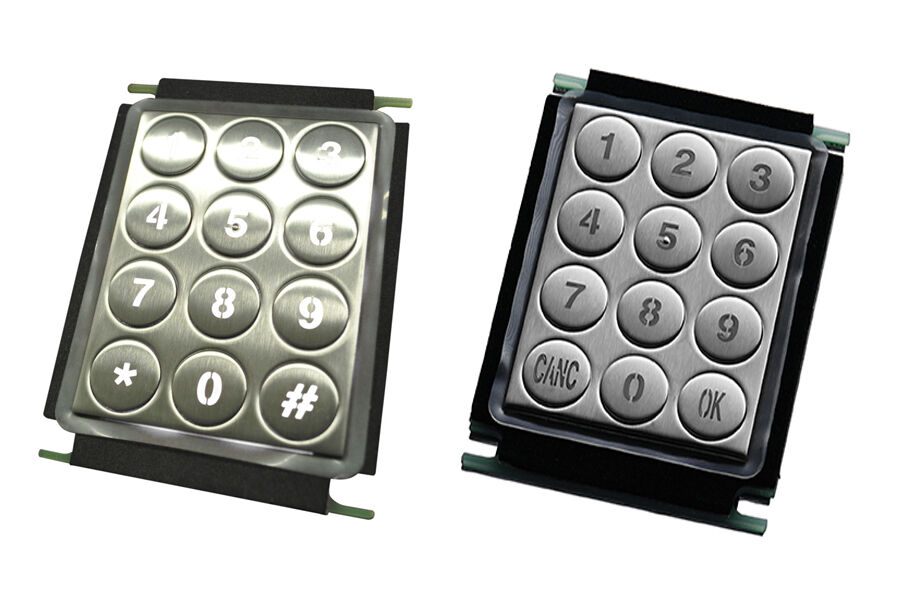

Backpanel stainless steel numeric keypad with 12 round keys, illuminated and vandal-resistant

TKV-012-17 Round DGI is a stainless steel rear‑mount numeric keypad featuring 12 round keys, specifically developed for industrial applications with vandal‑resistant and shock‑proof performance. With an IP65 rating, it features a splash‑resistant design that withstands harsh, humid, and dusty environments. It is widely used in industrial control panels, access control systems, elevator controls, self‑service terminals, petrol stations, car washes, and outdoor public facilities – wherever vandal resistance, durability, and limited‑key input are essential.

This keypad seamlessly combines a vandal‑resistant construction, IP65 protection, backlighting convenience, and rugged stainless steel material – making it your ideal choice for reliable, straightforward numeric input in demanding environments.

ADVANTAGES

  • Shock-proof, elegant keypad with 12 backlit buttons
  • Splash-proof design
  • Stainless steel buttons with abrasion-resistant laser marking
  • Cost-effective modifications possible (additional keys, individual labeling)
  • Premium stainless steel product
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.
+852 3461 9789

Order Data*

LAYOUTShort NameArticle NumberColor
NUM
TKV-012-17-ROUND-DGI-IP65-BACKL-BP-MATRIX
KV21202
silver-grey

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Rear Mounted
    Guarantee / Warranty:
    2 years
    lawful warranty

    Keys:

    Key stroke:
    0.6
    Operating force:
    4.50 N
    Switching cycles:
    approx. 3 million
    Switching technology:
    Snap domes

    Material:

    Front material:
    stainless steel
    Front finish:
    brushed
    Housing colour:
    silver-grey
    Housing material:
    stainless steel

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    85°C
    min. Operating temperature:
    -10°C
    max. Operating temperature:
    70 °C

    Fastening:

    Number of fastening points:
    4
    Fastening type:
    Mounting holes
    Spacing X:
    73.00 mm
    Spacing Y:
    93.00 mm

    Product dimensions:

    Length (width):
    104 mm
    Width (depth):
    78 mm
    Height:
    9 mm
    Weight:
    207 g

    Packaging dimensions:

    Length (width):
    530 mm
    Width (depth):
    210 mm
    Height:
    100 mm
    Weight:
    690 g
  • Wireless:
    -
    Supported operating systems:
    Win

    Electrical data:

    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65 frontside

    Declarations & Certifications

    • CE

    • EMV*

    • RoHS*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads

Product description

TKV-012-17 Round DGI is a stainless steel rear‑mount numeric keypad featuring a rugged stainless steel front panel and housing with 12 round keys, offering vandal‑resistant and shock‑proof performance.

The keypad features backlighting for low‑light environments. Its splash‑resistant design (IP65 rating) adapts to humid or dusty industrial settings. The stainless steel keys feature wear‑resistant laser‑marked legends. Customisation options are available (such as additional keys and custom Logo printing) to meet specific requirements.
