Compact Desktop Stainless Steel Keyboard with Touchpad

TKV-084 FIT Touch is a compact stainless steel keyboard with an integrated touchpad, specifically designed for demanding industrial environments where space is limited. It is widely used in industrial control panels, automation equipment operation stations, paint shops, outdoor self‑service terminals, and medical devices – wherever compact size, vandal resistance, corrosion resistance, and special environmental requirements (such as silicone‑free and low‑emission) are essential.

This keyboard seamlessly combines rugged protection, an integrated touchpad, and an optional LABS‑free version – making it your ideal choice for safe, efficient, and stable operation in demanding industrial environments.

ADVANTAGES

  • High quality, compact housing made of stainless steel
  • High impact resistance and splash-proof design
  • Stainless steel buttons with abrasion-resistant laser marking
  • LABS versions available
  • Individual adjustments on request.
Product Request
Do you have any questions about
the product or do you need further information?
Just give us a call!
You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.
+852 3461 9789

Order Data*

LAYOUTShort NameOrder NumberColor
US
TKV-084-FIT-TOUCH-IP65-MGEH-USB-US
KV23203
silver-grey
product details

*Further layouts and individual customisation available on request.

Technical data

  • Keyboard Type:
    Desktop Keyboard
    Guarantee / Warranty:
    2 years
    lawful warranty

    Keys:

    Key stroke:
    1.5
    Operating force:
    1.50 N
    Switching technology:
    Carbon contact

    Technical data mouse replacement:

    Touchpad:
    capacitive
    Width:
    59 mm
    Length:
    43 mm

    Material:

    Front material:
    stainless steel
    Front finish:
    brushed
    Housing colour:
    silver-grey
    Housing material:
    stainless steel

  • Temperature ranges:

    min. Storage temperature:
    -25°C
    max. Storage temperature:
    55°C
    min. Operating temperature:
    -10°C
    max. Operating temperature:
    50 °C

    Fastening:

    Fastening type:
    attr_fastening_type.-
    Thread:
    -

    Product dimensions:

    Length (width):
    392 mm
    Width (depth):
    154 mm
    Height:
    26 mm
    Weight:
    1760 g

    Packaging dimensions:

    Length (width):
    535 mm
    Width (depth):
    230 mm
    Height:
    100 mm
    Weight:
    2240 g
  • Wireless:
    -
    USB-Type:
    USB-A
    Supported operating systems:
    Win
    Cable length:
    1700 mm
    Cable color:
    black

    Electrical data:

    max. ampere consumption:
    80 mA
    Operating voltage:
    5 V

  • Protection classes:

    • IP Protection class: IP65

    Declarations & Certifications

    • CE

    • EMV*

    • REACH*

    * Declarations available on request

Notes about cleaning and material resistances

Downloads

Product description

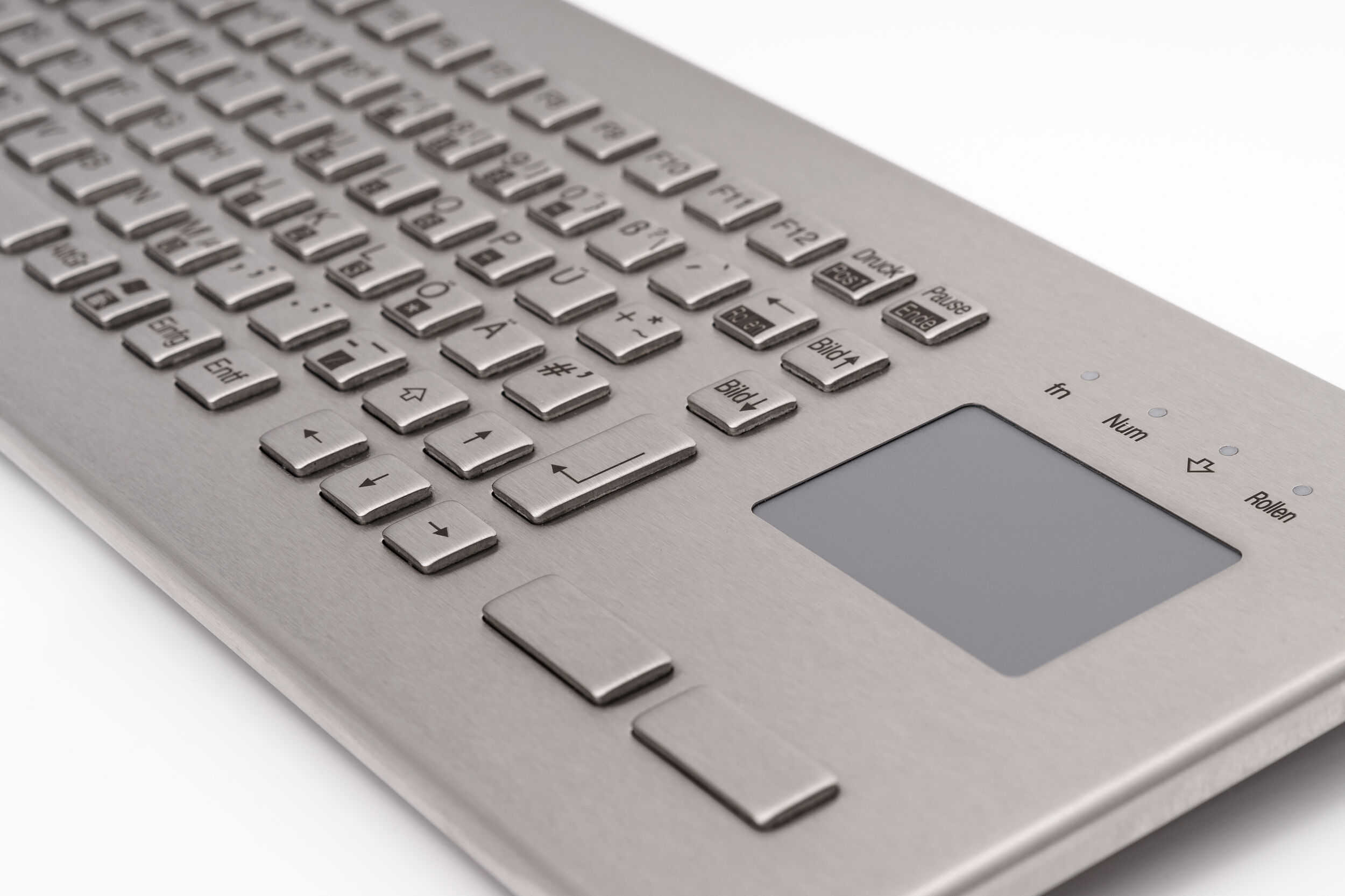

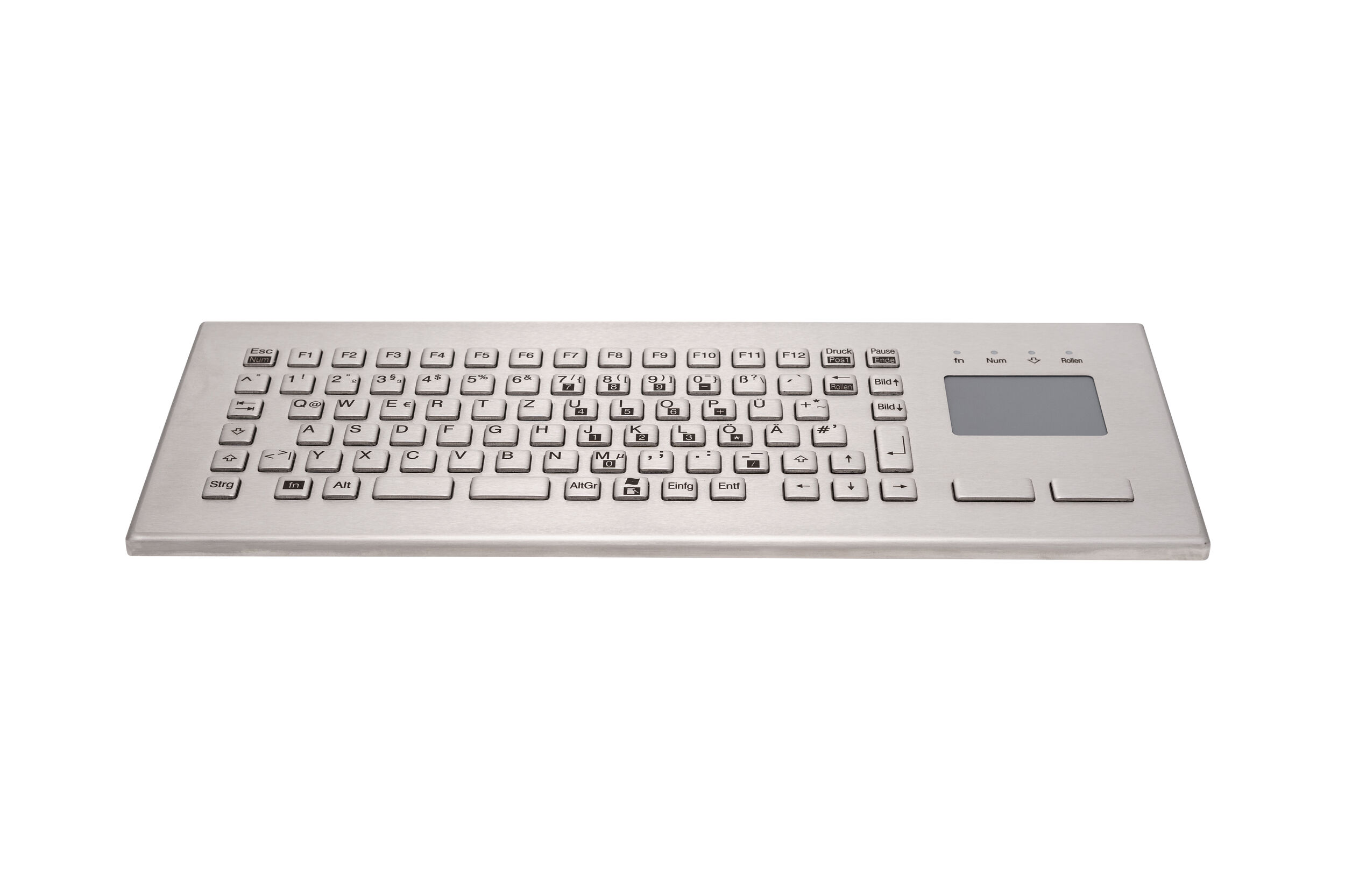

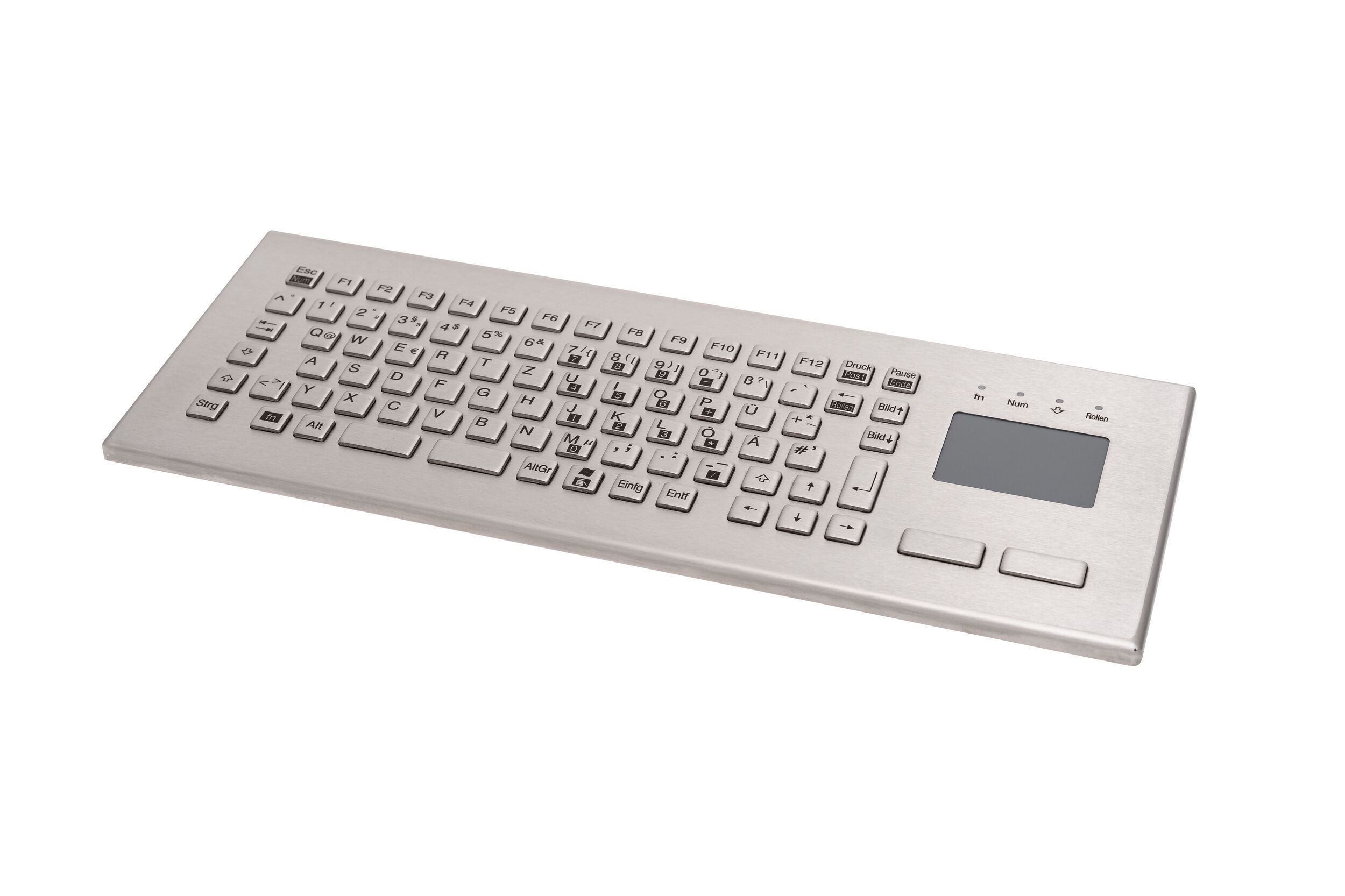

TKV-084 FIT Touch – Compact desktop stainless steel keyboard. This keyboard stands out for its compact dimensions and rugged stainless steel construction, making it suitable for harsh environments with limited space. The flat, rounded keycaps provide excellent tactile feel, while the integrated touchpad delivers comfortable cursor control.

A LABS‑free version is available upon request, ensuring safe use in painting and coating environments. Customisation services (such as adding company logos or specific country layouts) are also available for small batch orders.
